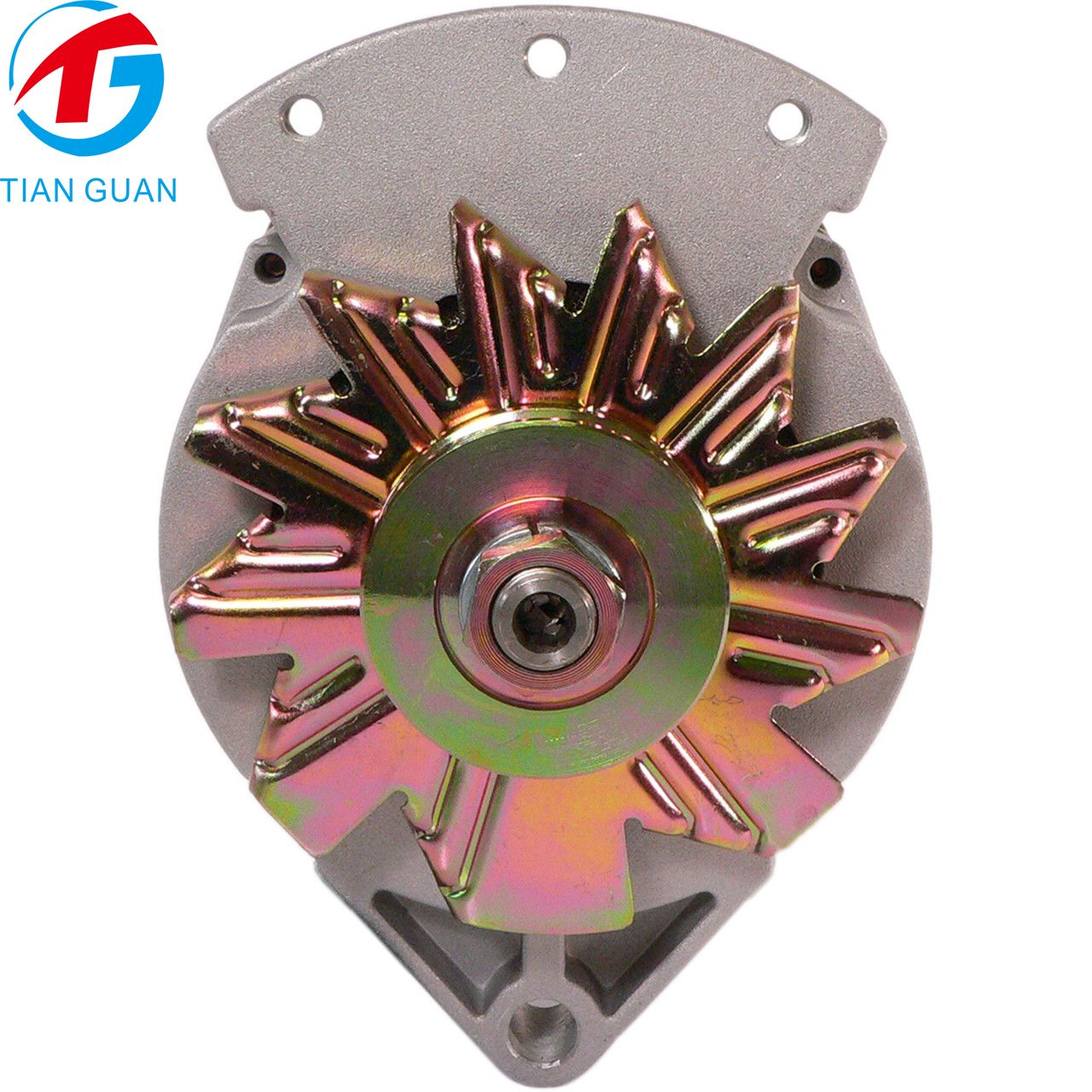

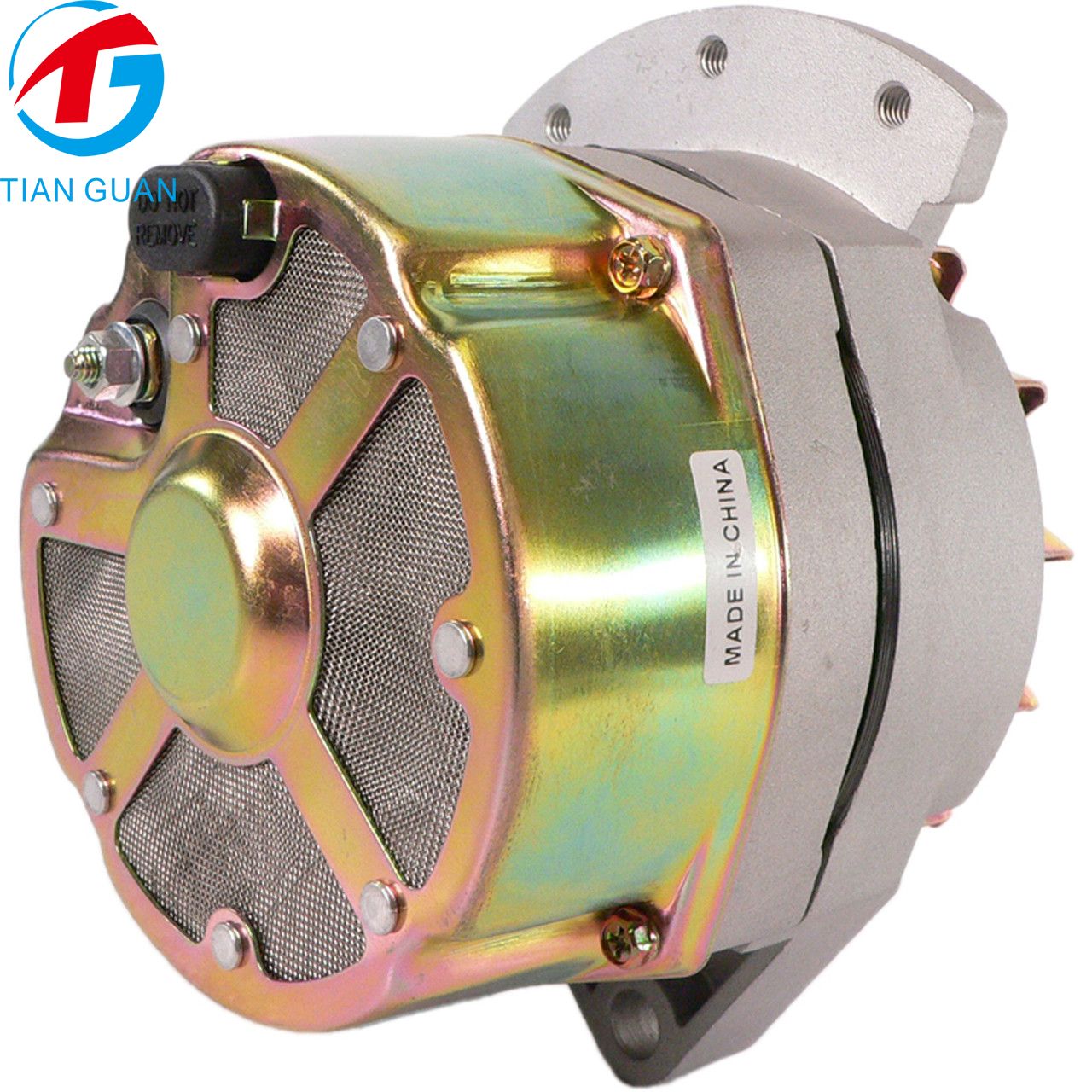

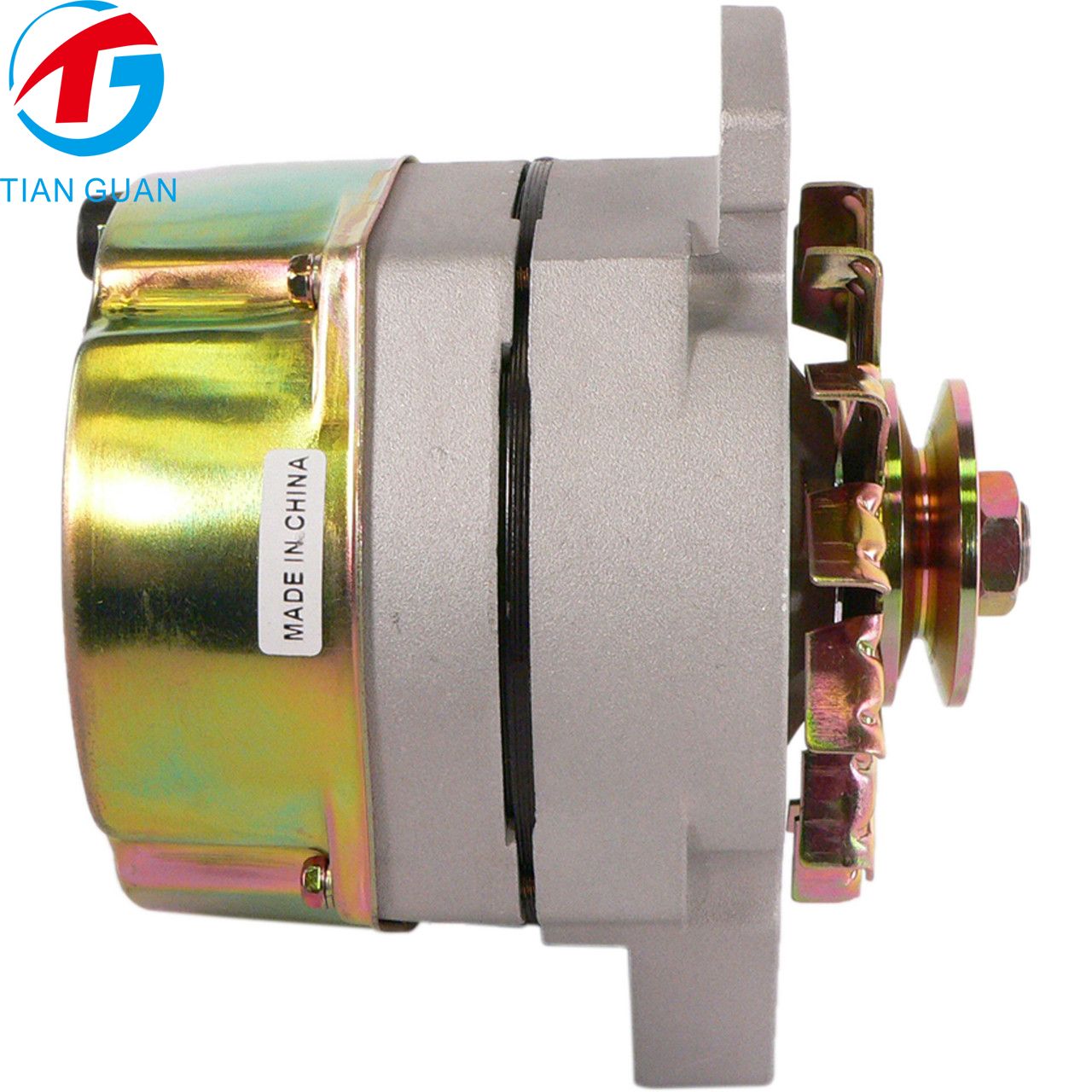

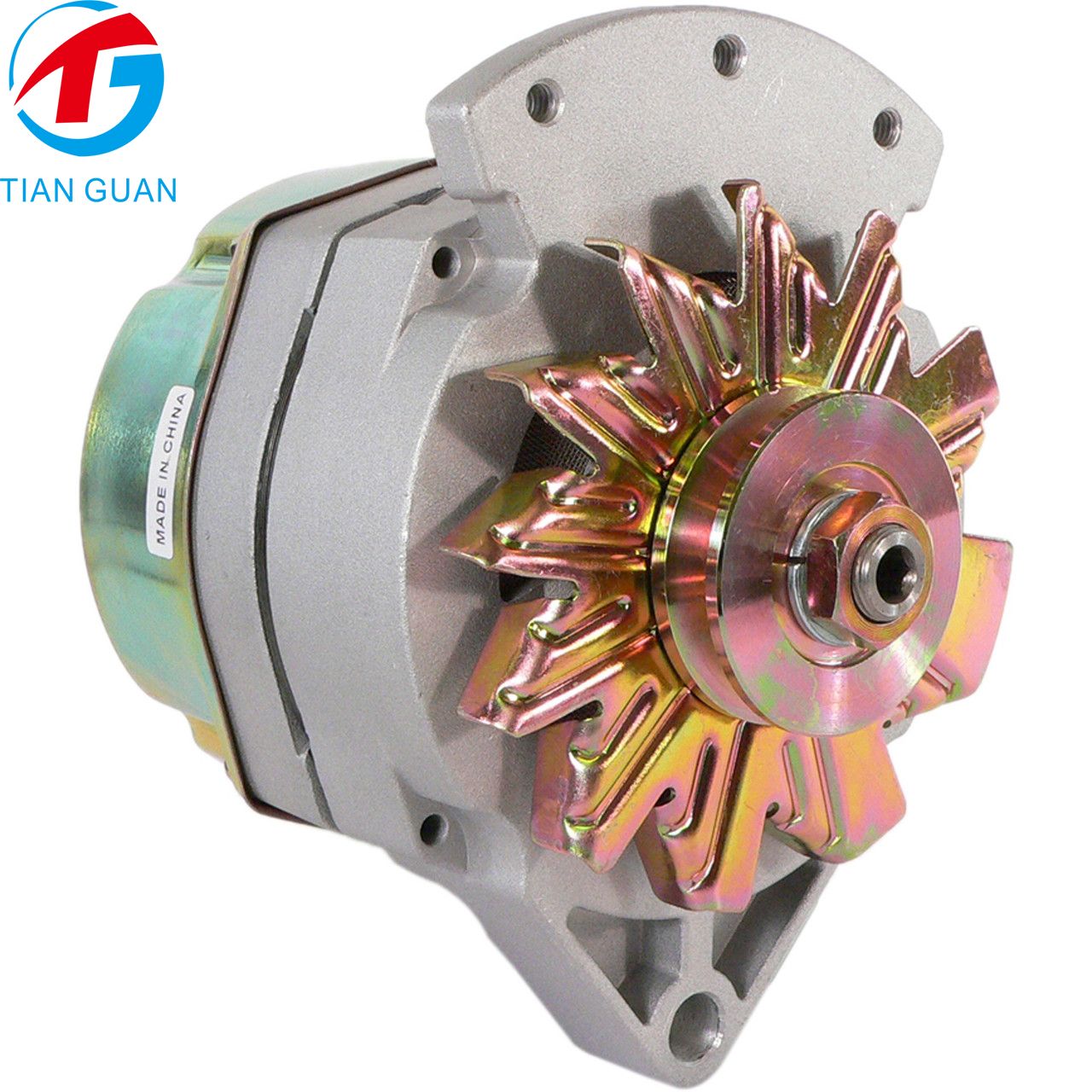

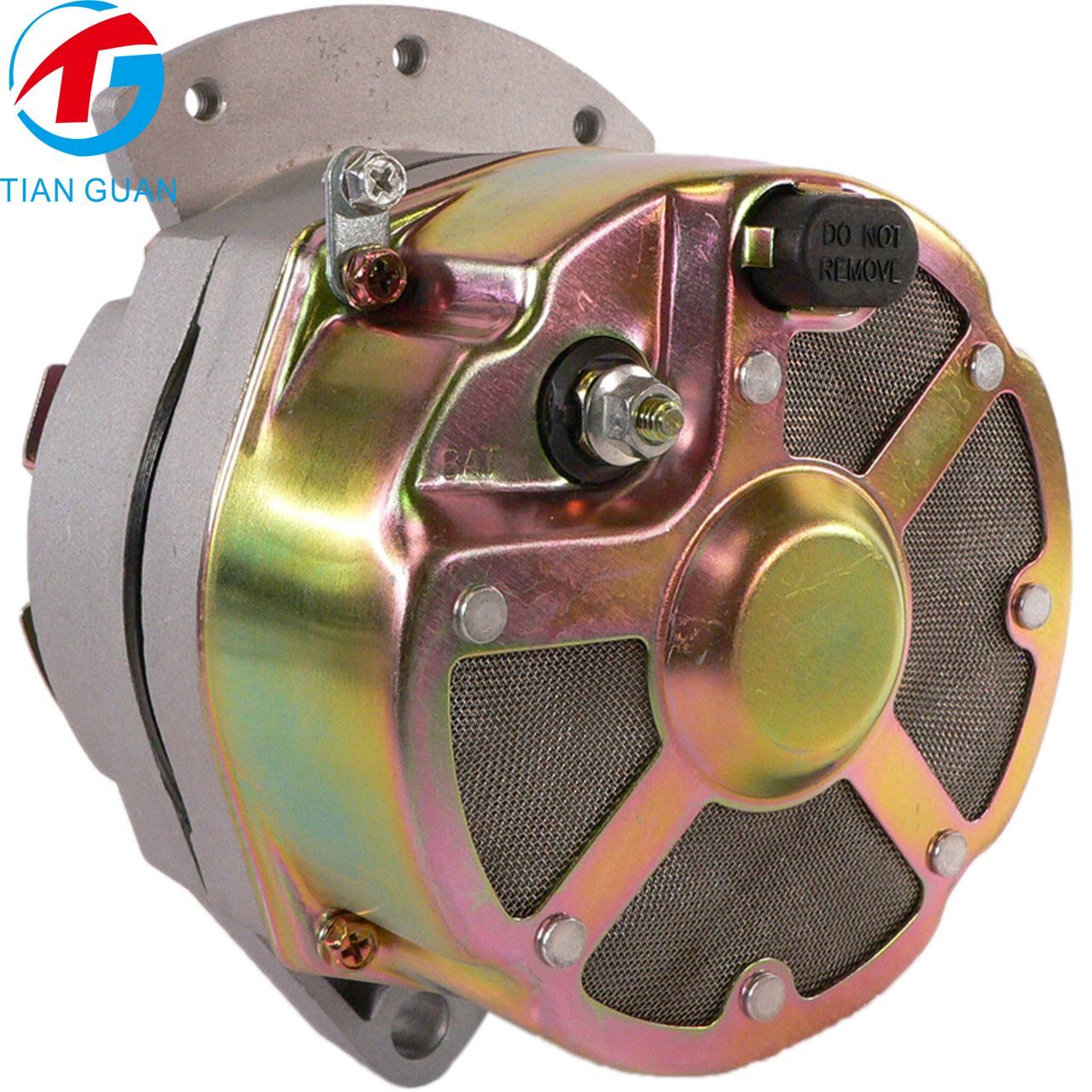

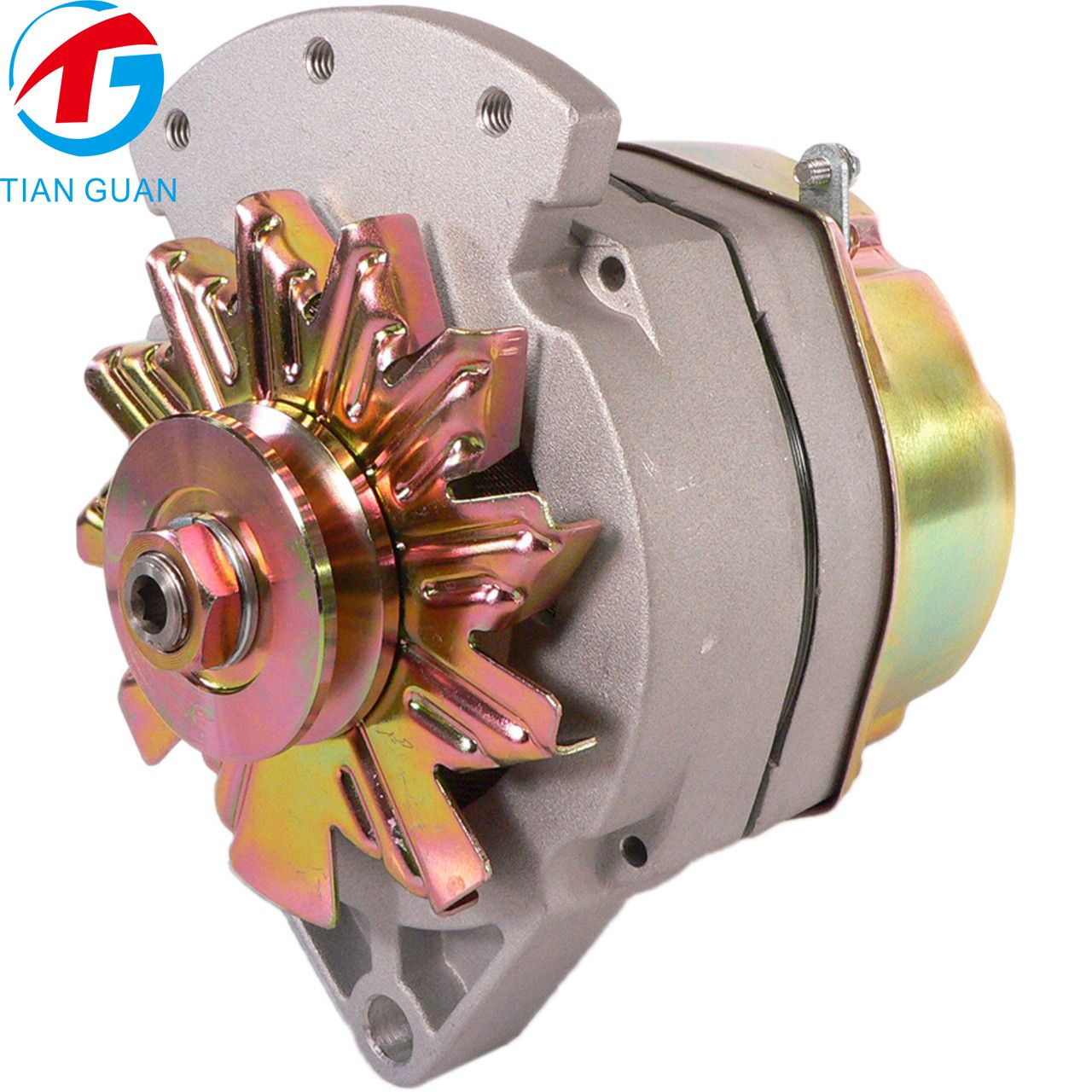

ATG10702 Alternator Replaces Motorola Marine Applications

ITEM NO：ATG10702

API MARINE	20091
ARCO MARINE	20500
ARROWHEAD	ADR0396
EMP PARTS	4-1064XMP
J & N	400-20004
LESTER	8904
WAI	8904N

Product Specs

Item Condition	Aftermarket Part
Unit Type	Alternator
Voltage	12
Rotation	CW
Dimension	Replacement 10SI Unit:, Mtg. Ear Top Holes: (3) x 5/16-18 Threaded, Mtg. Ear Bottom Hole: 12.9mm Unthreaded, Mtg. Ear Top Thick: 11.2mm, Mtg. Ear Bottom Thick: 26.2mm, B+ Terminal: 12-24, Note: 1-Wire,
Amperage	63
Clock	12
Pulley Class	V1
Regulator	IR
Fan Type	EF
Fits	Marine Applications 1-V Pulley 66.7mm OD Use Spacer 550352 IF Additional One Inch Foot IS Required This is a 10SI Style Alternator Used to Replace the Motorola Units With a 1 Inch Bottom Mounting Foot and a 1-Wire Hook-up in Marine Applications.: See Also ADR0397 (Higher Amp): See Also ADR0398 (2-Wire Hook-up)
