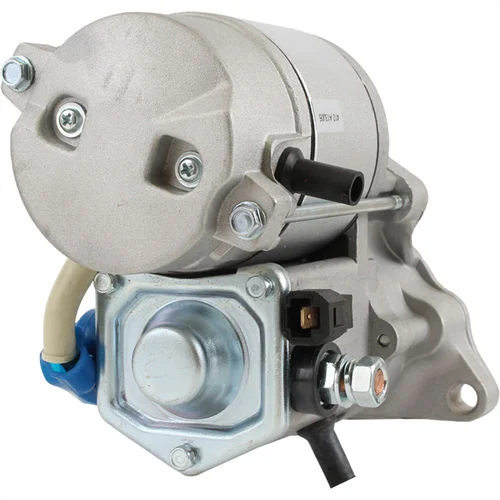

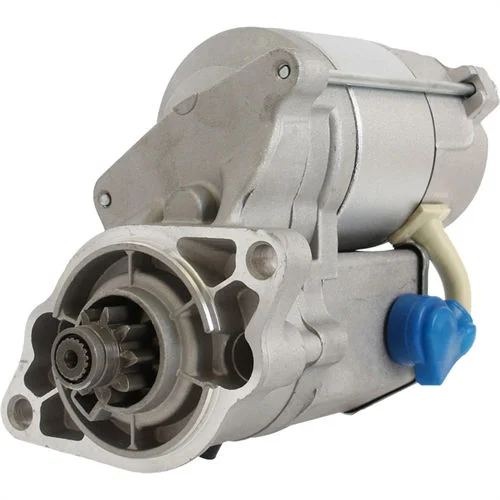

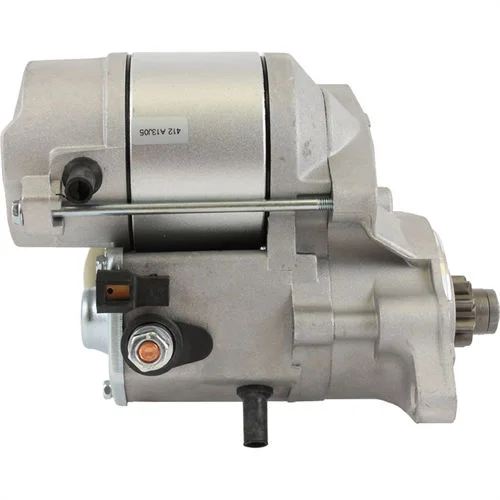

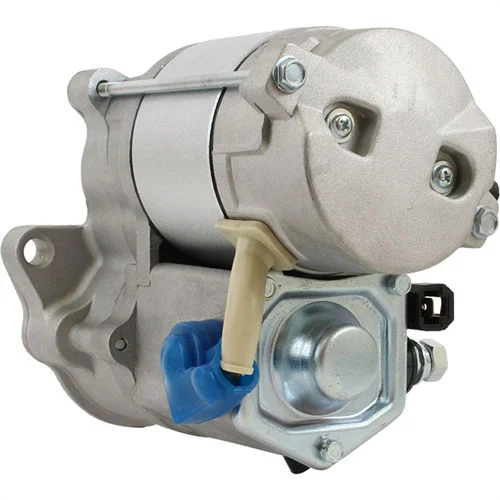

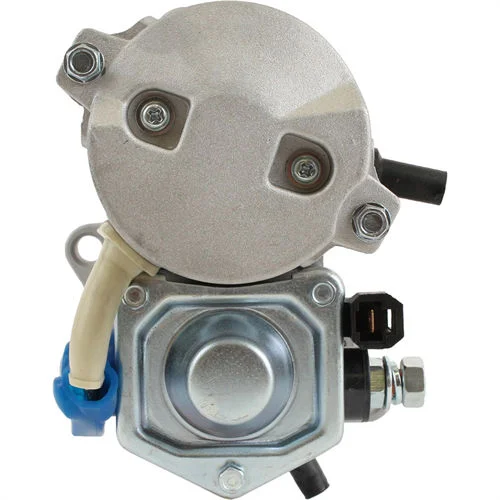

Starter Motor 19883-63010 / 19883-63012 for Kubota Engines D722, D902, V1200, V800-BBS
This 24V starter motor is designed for Kubota diesel engines, including models D722, D902, V1200, and V800-BBS. It is a high-torque, compact starter with 9 teeth and a 66.0 mm spigot, ensuring reliable engine cranking in industrial, agricultural, and construction equipment.
Key Specifications:
Part Numbers:
WAI: 18143N
Wilson: 91295341, 91295582
ATK: AKS988
PSH: 691502092
FAI: ST382
Wood Auto: STR30026, WOOSTR30026
Dixie: S8864
RNL: RNL1280005410
Primary: 19883-63010, 19883-63012
HC-Cargo: 113204, F032113204
Denso: 128000-5410, 128000-5411, 128000-5412, 128000-5413, 228000-4780, 228000-4781, 228000-4782, 228000-4783
Kubota OEM: 16617-63010, 16617-63011, 16617-63012, 16617-63013, 16617-63014, 16617-63015
Aftermarket:
Voltage: 24V
Power: 1.4 kW (High torque for diesel engines)
Spigot Diameter: 66.0 mm
Teeth: 9
Pinion Home Position: 18.0 mm
B+ Terminal: M8 stud
Mounting Holes: 2
Mounting Position: +50°
Rotation: Clockwise (CW)
Compatible Engines:
Kubota D722
Kubota D902
Kubota V1200
Kubota V800-BBS
(Used in tractors, excavators, generators, and industrial machinery.)
Features:
✔ High Torque (1.4 kW) – Reliable cold-start performance
✔ Denso-Compatible Design – Durable construction
✔ 9-Tooth Pinion – Proper gear engagement
✔ 24V System – Suitable for heavy-duty applications
✔ Compact & Lightweight – Easy installation
Notes:
Verify mounting position (+50°) and rotation (CW) before installation.
Check spigot size (66.0 mm) and pinion teeth (9) for compatibility.
Aftermarket alternatives (WAI, Wilson, ATK, etc.) offer cost-effective replacements.
