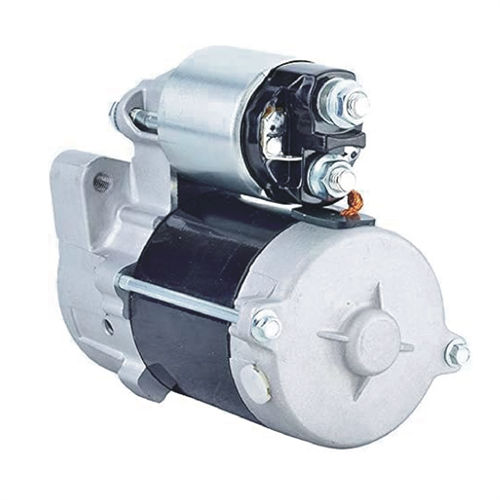

STG93700 STARTER 3006244 228000-6830 FITS ARCTIC CAT SNOWMOBILE T660 TURBO 660CC
Key Specifications:
Brand/Model: STG93700 (Aftermarket)
OEM Cross-References:
Arctic Cat: 3006-244, 3007-400
Denso: 228000-6830
Suzuki: 31100-70B22 (likely used in Suzuki-powered Arctic Cat models)
WAI: 32525N
Voltage: 12V
Starter Type: PMDD (Permanent Magnet Direct Drive – robust for cold-weather starts)
Rotation: CW (Clockwise)
Tooth Count: 8 (Must match the engine’s flywheel)
Length: 7.118 in (180.8 mm)
Mounting Holes:
Thread Size: M8-1.25 (x2 threaded ears)
Center-to-Center Distance: 3.713 in (94.3 mm)
Registry OD: 2.937 in (74.6 mm) (Ensures proper alignment)
Weight: 7.27 lbs (3.3 kg)
Compatibility:
Primary Application:
Arctic Cat T660 Turbo (660cc snowmobile)
May also fit other Arctic Cat/Suzuki-powered models sharing the same OEM part numbers.
Notes:
Condition: Aftermarket – Meets or exceeds OEM specifications.
PMDD Benefits: Simple, durable design ideal for high-cranking torque in cold climates.
Critical Checks Before Installation:
Verify tooth count (8) and rotation (CW) match your engine.
Confirm mounting hole alignment (M8-1.25 threads, 94.3mm spacing).
