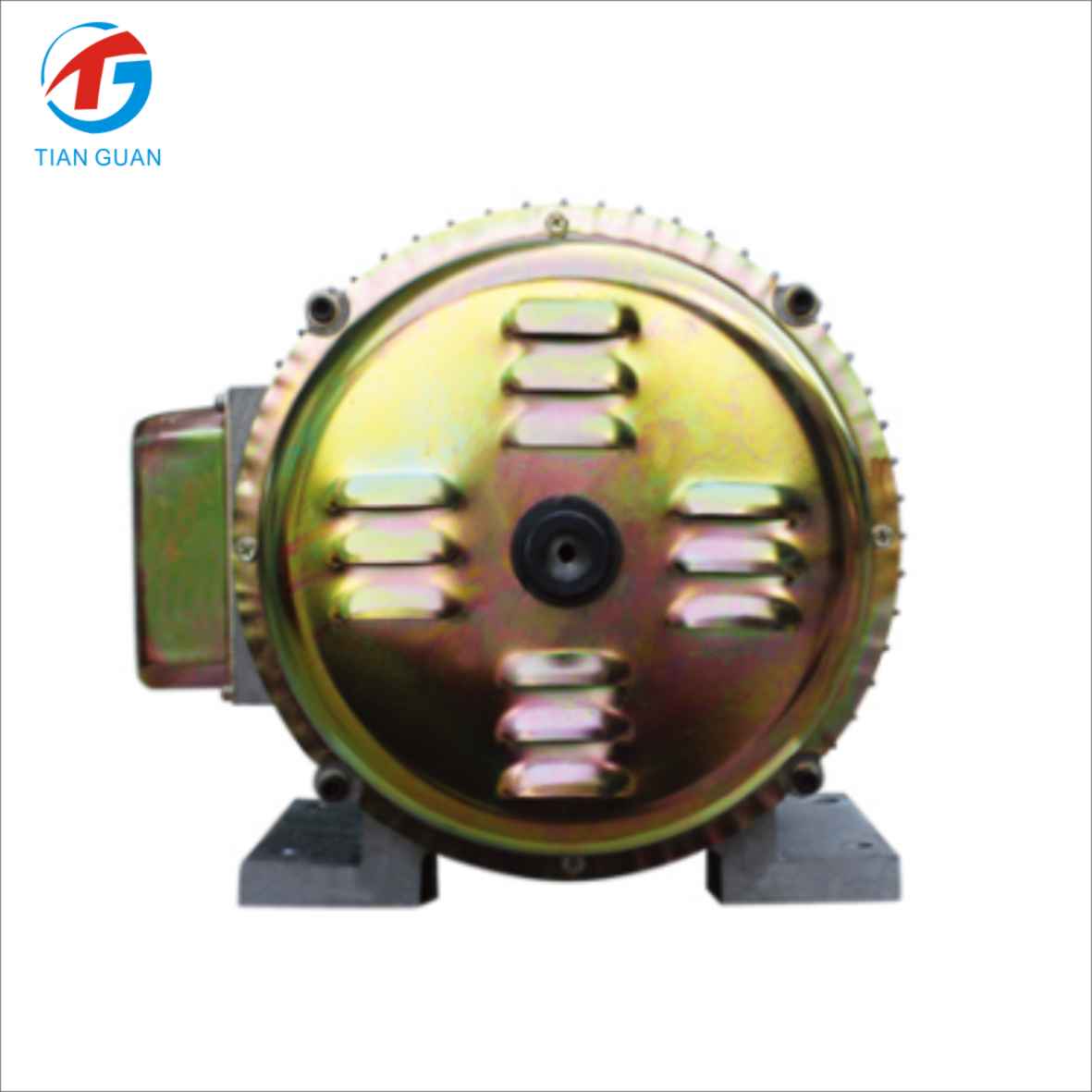

15-30KW variable frequency high voltage DC motor generator
JFZ3030 : 300V 30A DC 2000r/min-6000r/min
JFZ3040 : 300V 40A DC 2000r/min-6000r/min
JFZ3030 DC motor generator for bus air conditioner
The product can be customized according to customer requirements, voltage specifications, transmission and installation methods
Features
1. The appearance and installation method of the motor refer to Y series asynchronous motors, and the installation is simple and convenient;
2. The motor adopts an aluminum shell, which is light in weight and has good heat dissipation performance;
3. Using claw pole type brush structure, built-in voltage regulator, stable voltage output 300V±20V when the speed changes;
4. The speed characteristics are good. When the motor speed is between 2000r/m-6000r/m, the output rated power of JFZ3030 is ≥9Kw, and the output rated power of JFZ3040 is ≥12Kw;
5. The generator excitation system is self-excited by the generator and does not require battery excitation.
