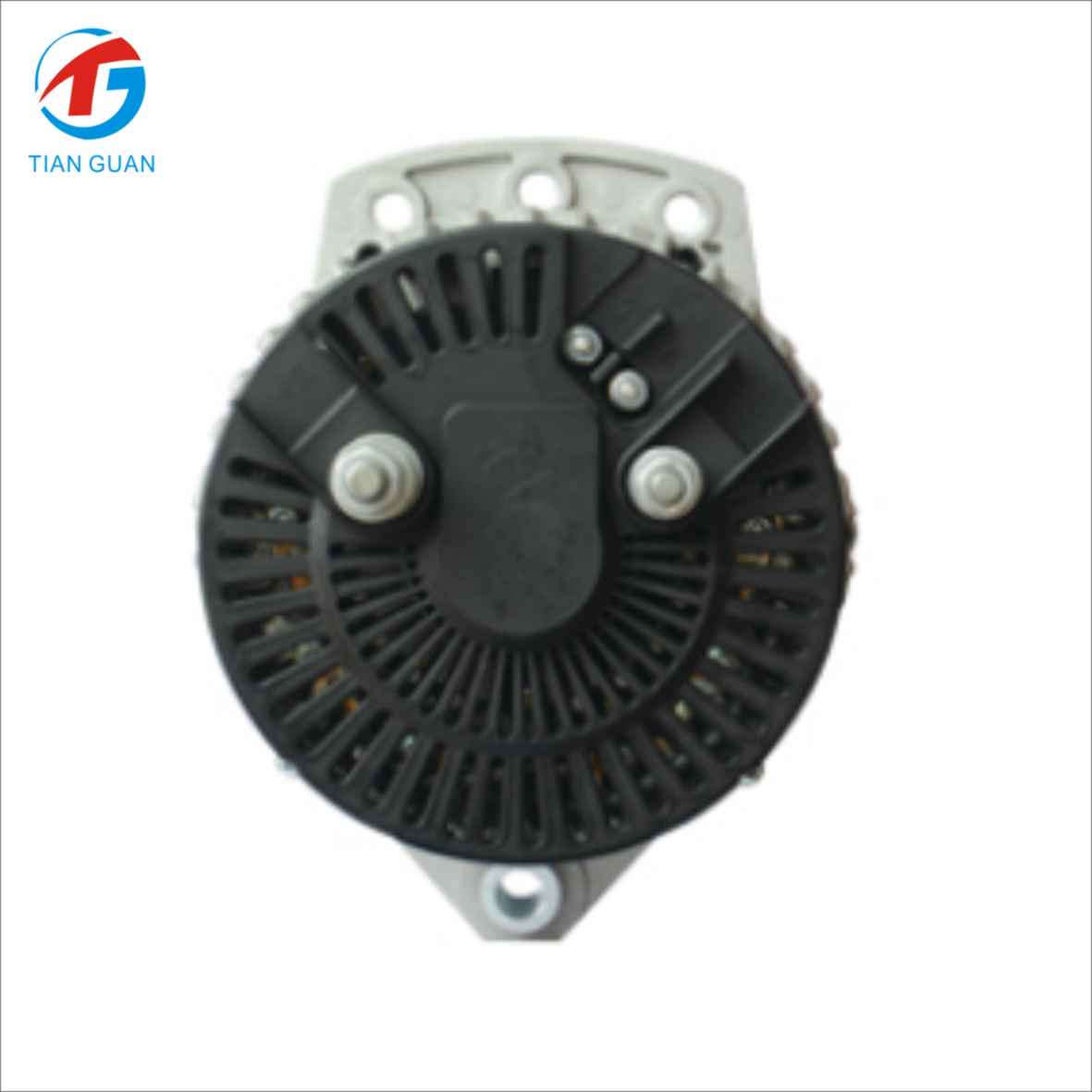

10-15KW variable frequency high voltage DC motor generator
JFZ3050 : 300V 50A DC 1200r/min-6000r/min
JFZ1113 : 110V 135A DC 1200r/min-6000r/min
JFZ7200 : 72V 200A DC 1200r/min-6000r/min
JFZ5280 : 54V 280A DC 1200r/min-6000r/min
JFZ3050 DC motor generator for marine power supply system
The product can be customized according to customer requirements, voltage specifications, transmission and installation methods
1. Electrical performance:
System power supply: 48V 60V 72V 96V 220V 380V
Output current: 280A 200A 180A 135A 35/50A 25/40A
Voltage regulation value: ±2V
The generator is a two-wire system
Insulation class: H class
2. Temperature:
Working environment temperature: -40℃-110℃
3. Mechanical properties:
Steering: viewed clockwise from the driving end
Speed: 6000r/min
Weight: 30kg
4. Design features:
Good low-speed performance, small size, light weight and high efficiency. The energy consumption ratio is up to 75%, and the dual internal fan design enhances the heat dissipation effect
