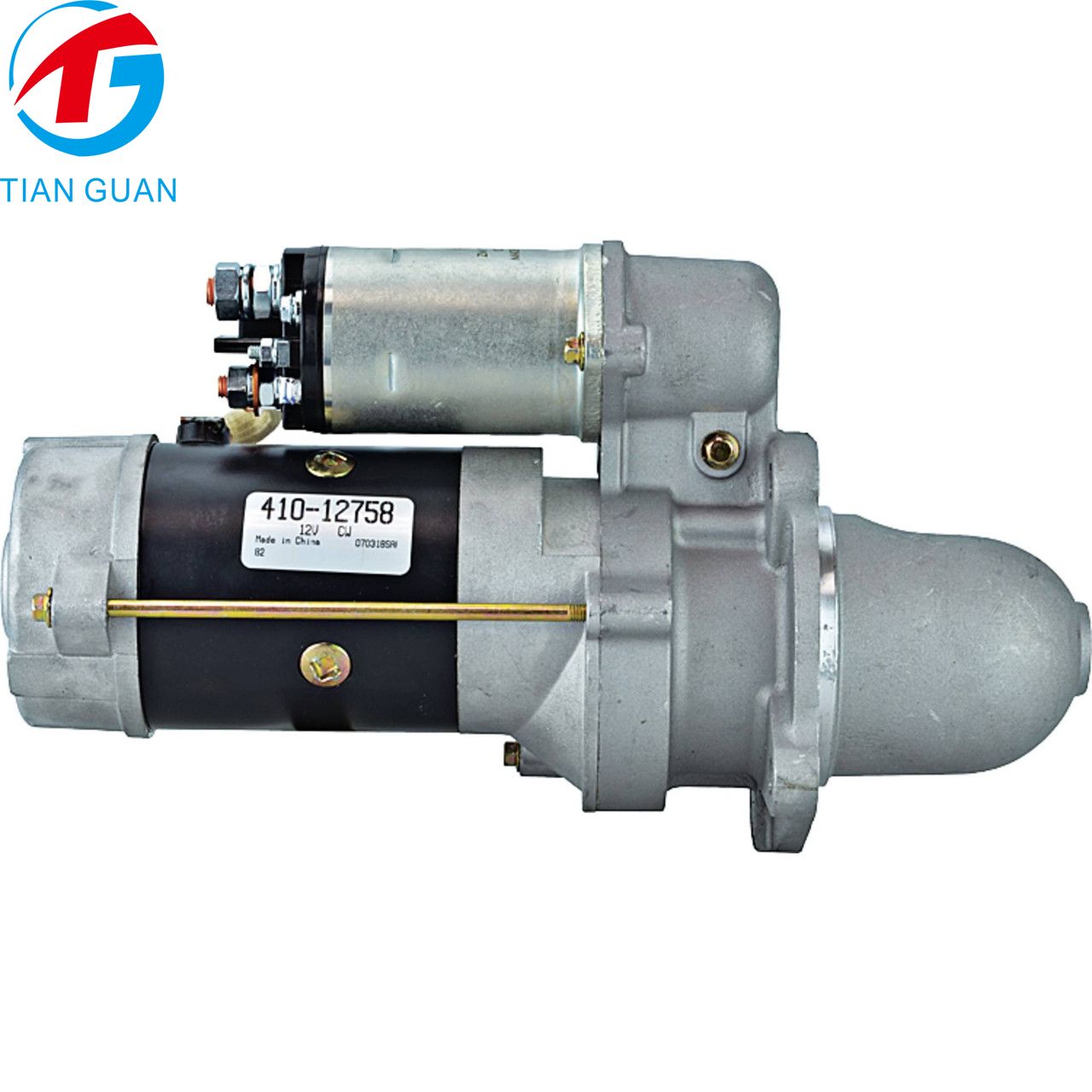

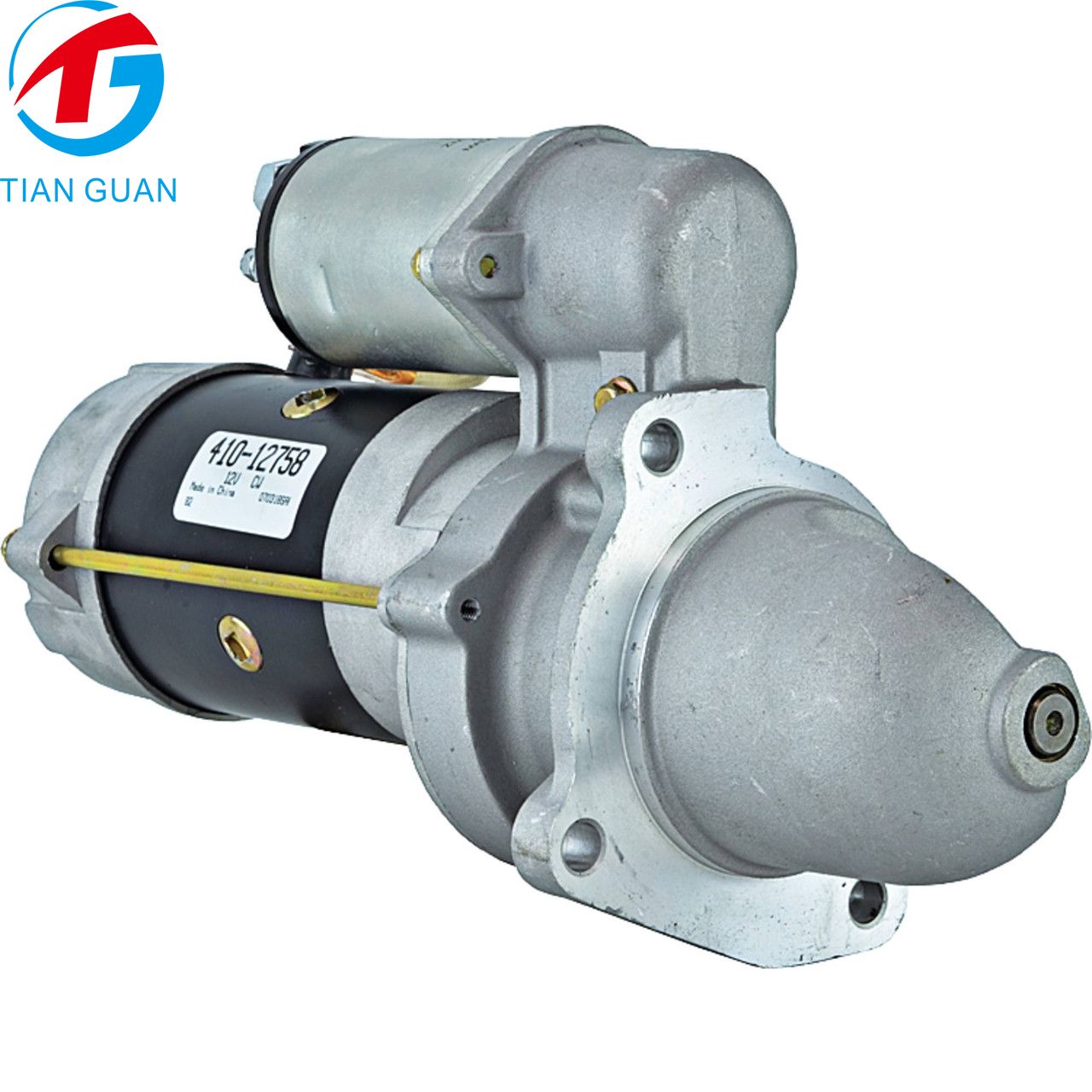

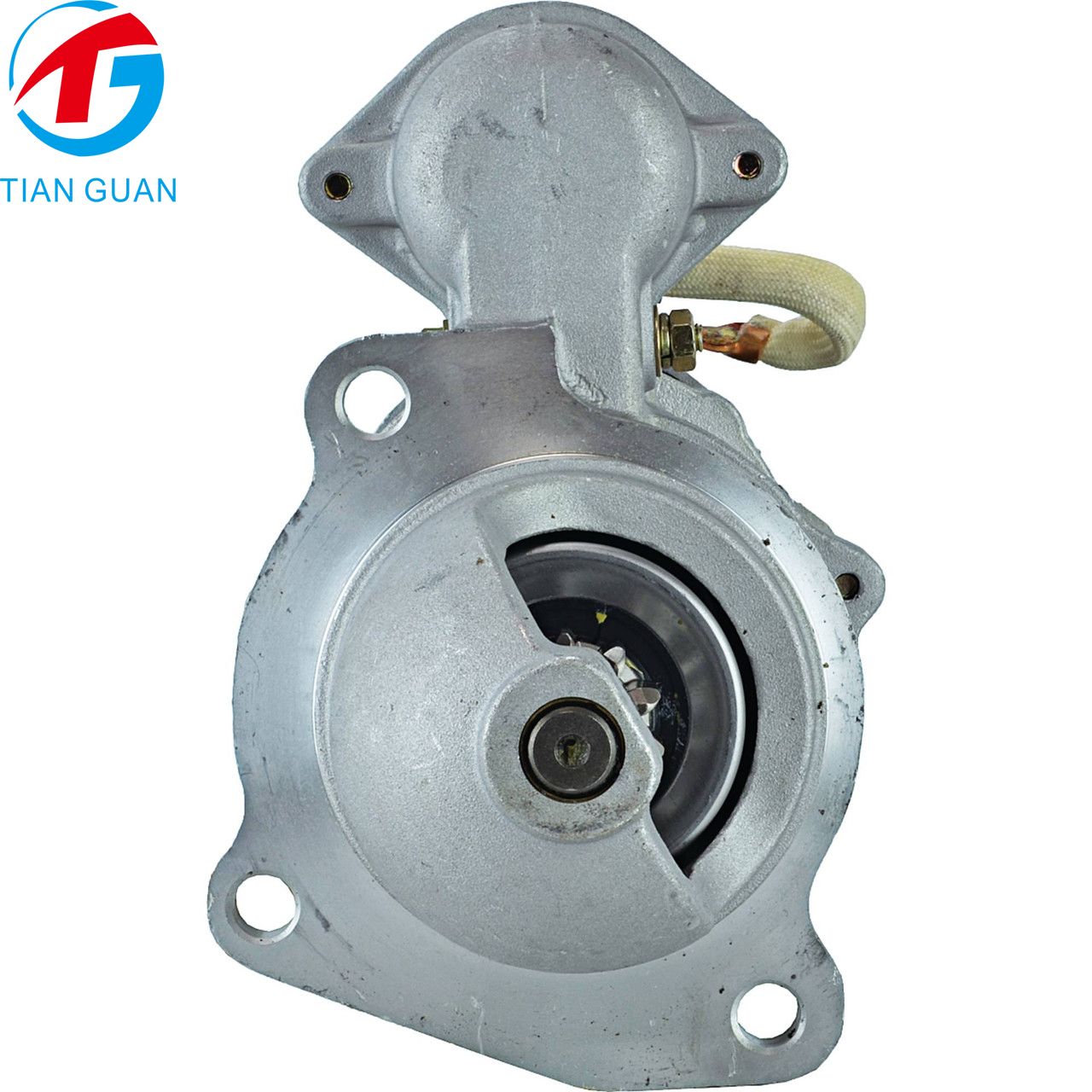

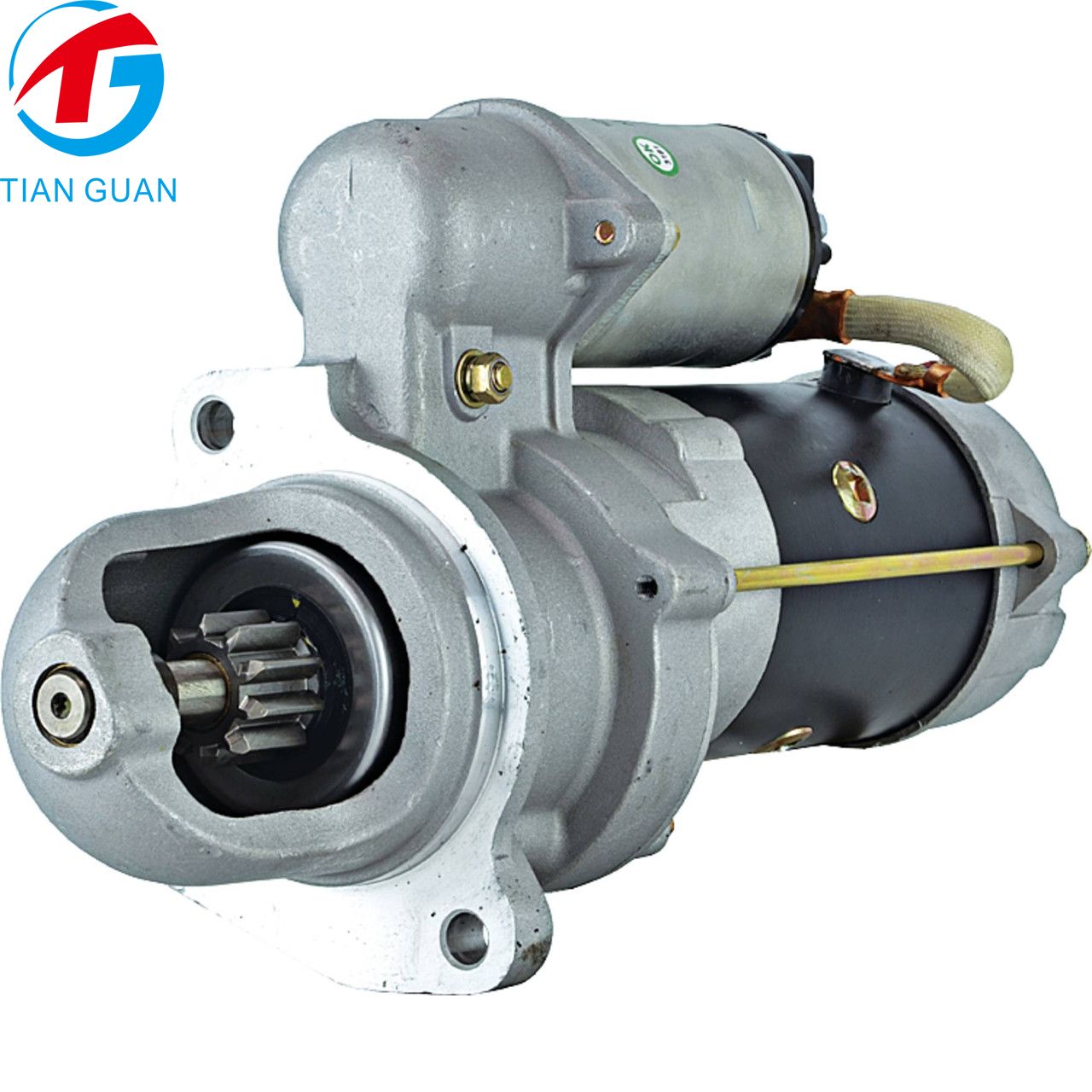

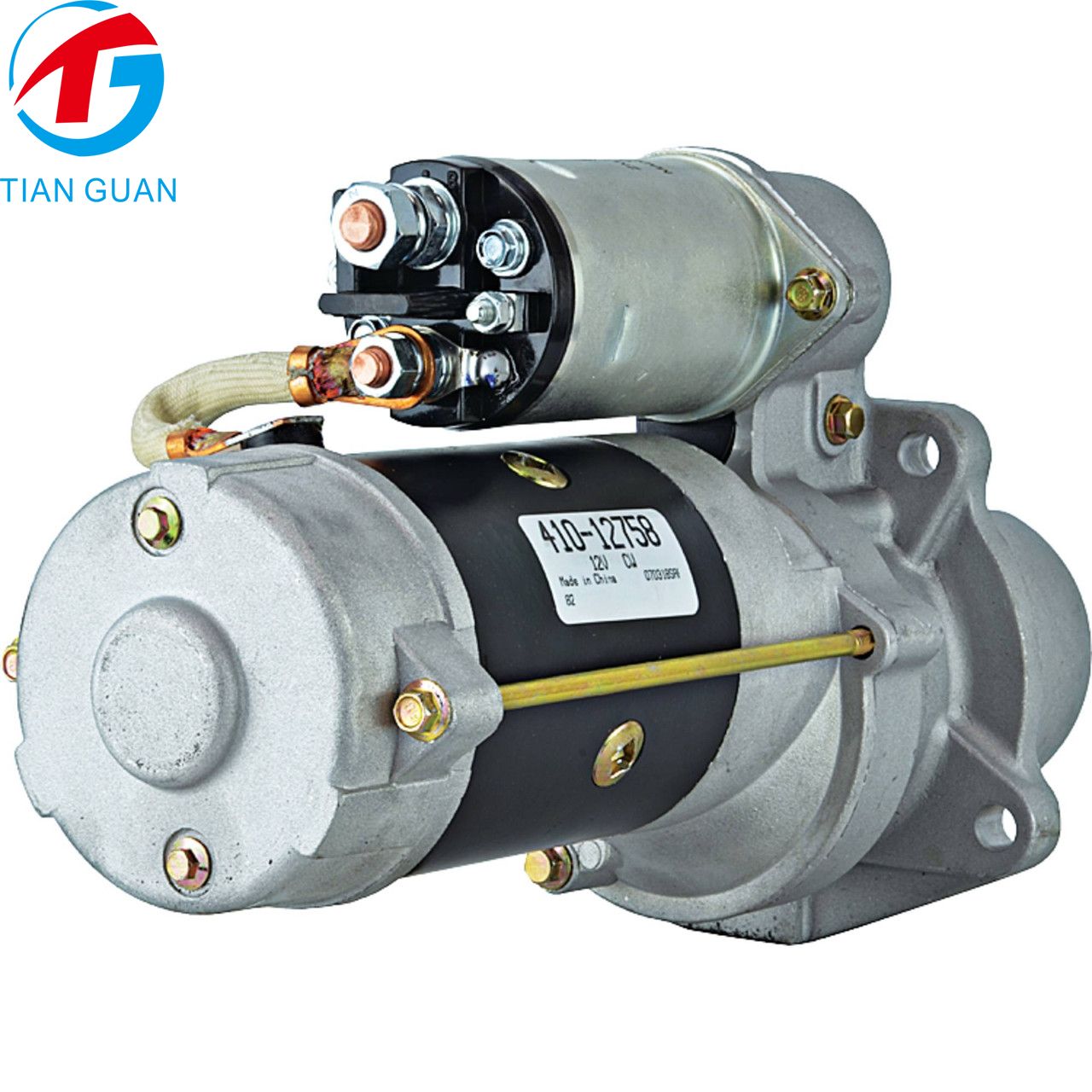

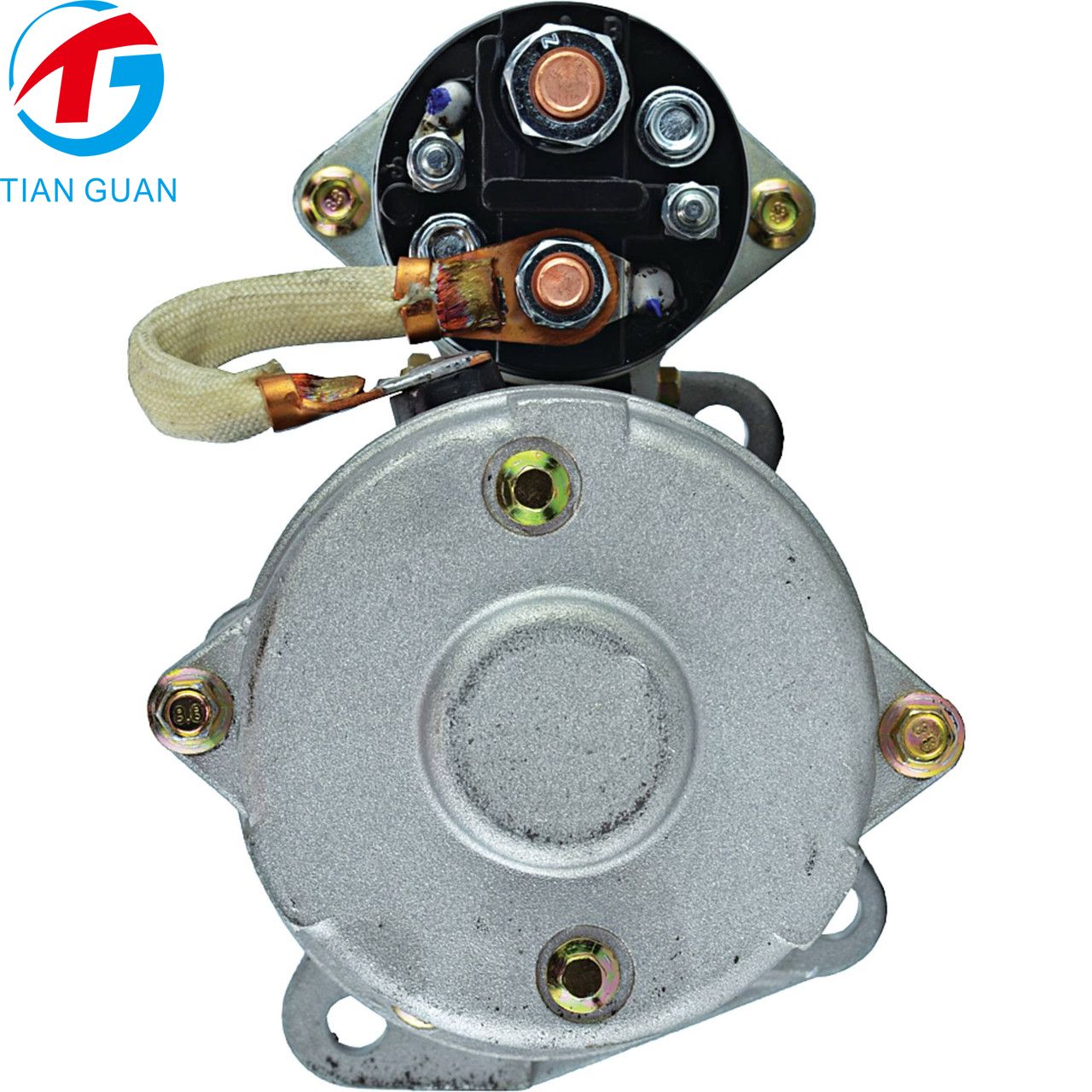

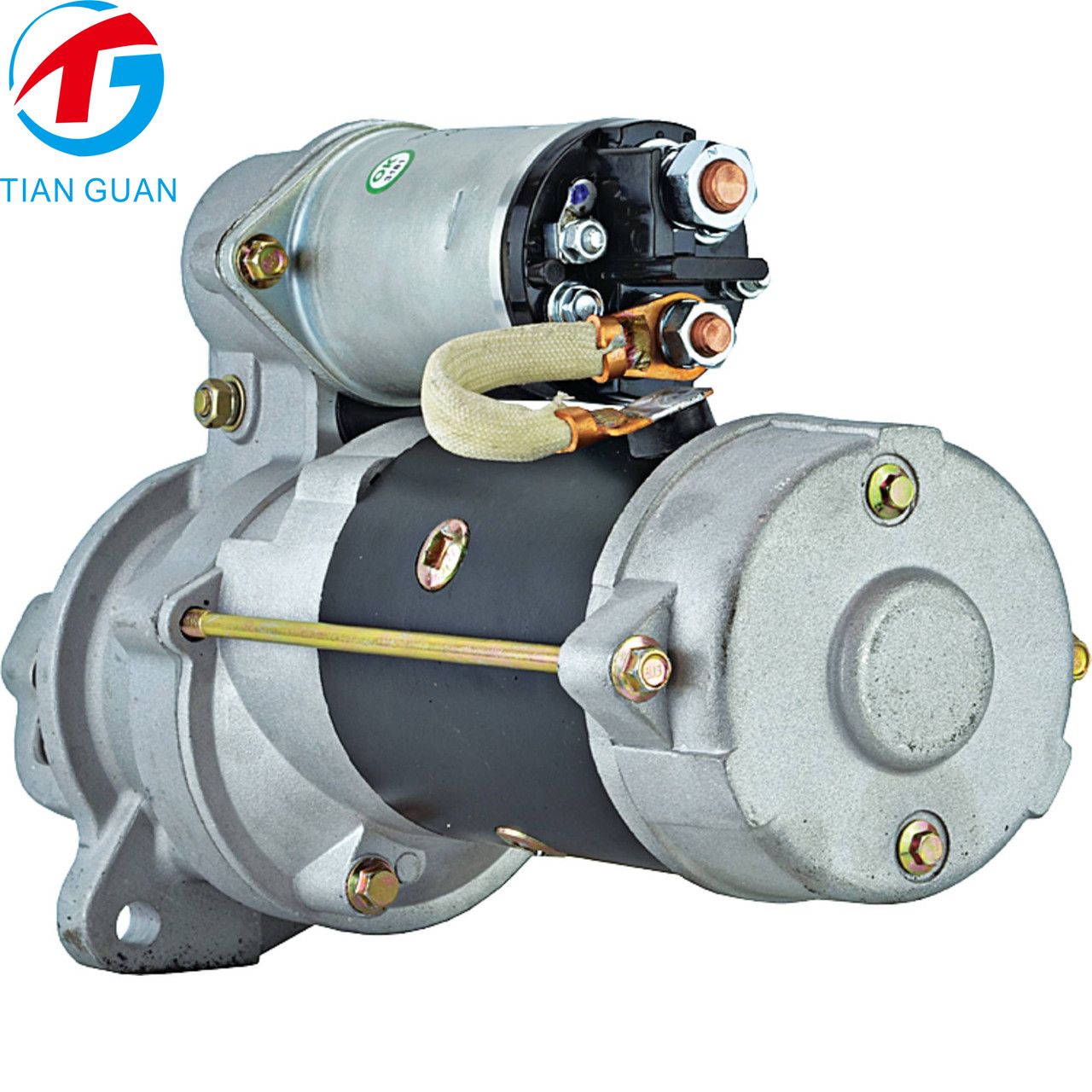

STG53320 Starter For Ford B600 / B700 / B800 School Bus, B600, B700 1992-1999 410-12758

ITEM NO：STG53320

Arrowhead	410-12758, NK0-23000-2228, SNK0027
Cummins	3675173RX
Delco	10465150, 10465397, 10465402, 10479614, 323-1188
Ford	F3HT11001AB, F3HT11001AC, F3HT1101AB, F3HZ11001AC, F3HZ11002A, F4HT11001AA, SA802, SA993
Hitachi	S2220
J&N Electrical Products	410-12123
Jannco	410-12123R, 410-12758N
Leece Neville	35259550, 35259550S, 4503M, 4503ME
Lester	6595
Lucas Electric	S2787
Nikko	02-23-1002, 0-23000-2220, 0-23000-2228

Product Specs

Item Condition	Aftermarket Part
Description	Starter
Family	Delco 28MT
Volt	12
Power	2.900 kw
HP	3.889
Condition	New
Quality Type	Heavy Duty
Rotation Direction	Clockwise
Electric Starter Type	Offset Gear Reduction (OSGR)
Number Of Teeth	10
Gear OD	1.260"
Gear OD	32mm
Length	243.600 mm
Length	9.591"
Mount Hole ID 1	11mm
Mount Hole 1 Type	Unthreaded
Mount Hole 2 Type	Unthreaded
Mount Hole ID 3	11mm
Mount Hole 3 Type	Unthreaded
Registry OD	3.500"
Registry OD	88.900mm
Wet Clutch Seal	FALSE
Warranty	1 Year
Notes	Dry Clutch@ 4-Terminal Solenoid with R Terminal
Mounting Ear Distance 1	127mm
Mounting Ear Distance 1	5"
Mounting Ear Distance 2	3.543"
Mounting Ear Distance 2	90mm
Mounting Ear Distance 3	3.543"
Mounting Ear Distance 3	90mm

Send Email

Download attachment

STG53320 Starter For Ford B600 / B700 / B800 School Bus, B600, B700 1992-1999 410-12758

MAKE	TYPE	MODEL	YEAR	ENGINE
Ford		B600 / B700 / B800 School Bus	Cummins 5.9L-359 (FD1060	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		B600 / B700 / B800 School Bus	Cummins 5.9L-359 (FD1060	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		B600	5900cc, 5.9L/359CI FD1060	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		B600	5900cc, 5.9L/359CI FD1060	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		B700	5900cc, 5.9L/359CI FD1060	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		B700	5900cc, 5.9L/359CI FD1060	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		B800	5900cc, 5.9L/359CI FD1060	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		B800	5900cc, 5.9L/359CI FD1060	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		F600 / F700 / F800 / F900 Trucks	Cummins 5.9L-359 (FD1060	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		F600 / F700 / F800 / F900 Trucks	Cummins 5.9L-359 (FD1060	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		F600	5900cc, 5.9L/359CI L6 FD1060	1993, 1994
Ford		F600	5900cc, 5.9L/359CI L6 FD1060	1993, 1994
Ford		F700	5900cc, 5.9L/359CI L6 FD1060	1993, 1994, 1995, 1996, 1997
Ford		F700	5900cc, 5.9L/359CI L6 FD1060	1993, 1994, 1995, 1996, 1997
Ford		F800	5900cc, 5.9L/359CI L6 FD1060	1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		F800	5900cc, 5.9L/359CI L6 FD1060	1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		L6000 / 7000 / 8000 / 9000 Trucks	Cummins 5.9L-359 (FD1060	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		L6000 / 7000 / 8000 / 9000 Trucks	Cummins 5.9L-359 (FD1060	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Ford		LN7000	5900cc, 5.9L/359CI L6 FD1060	1993, 1994, 1995, 1996, 1997
Ford		LN7000	5900cc, 5.9L/359CI L6 FD1060	1993, 1994, 1995, 1996, 1997
