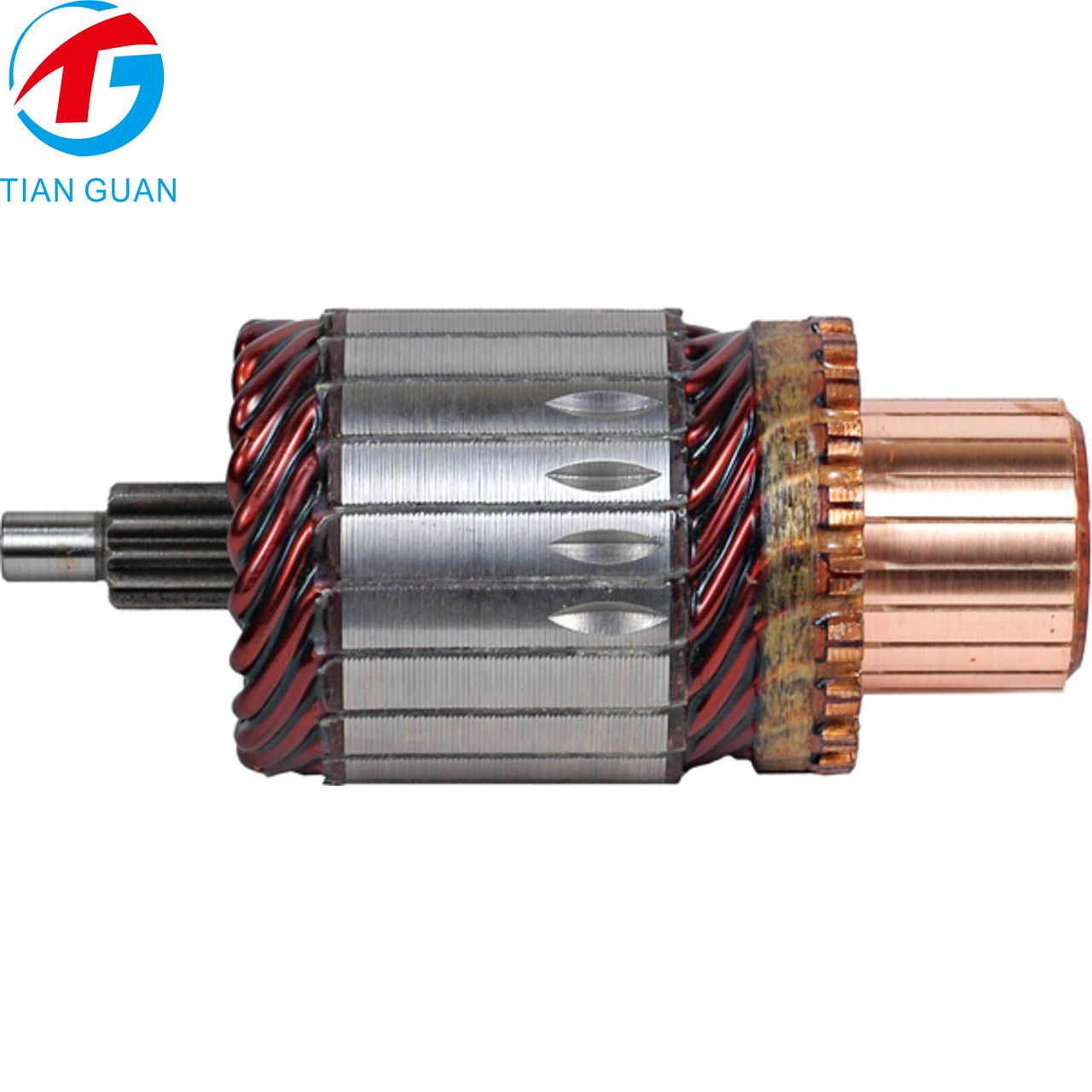

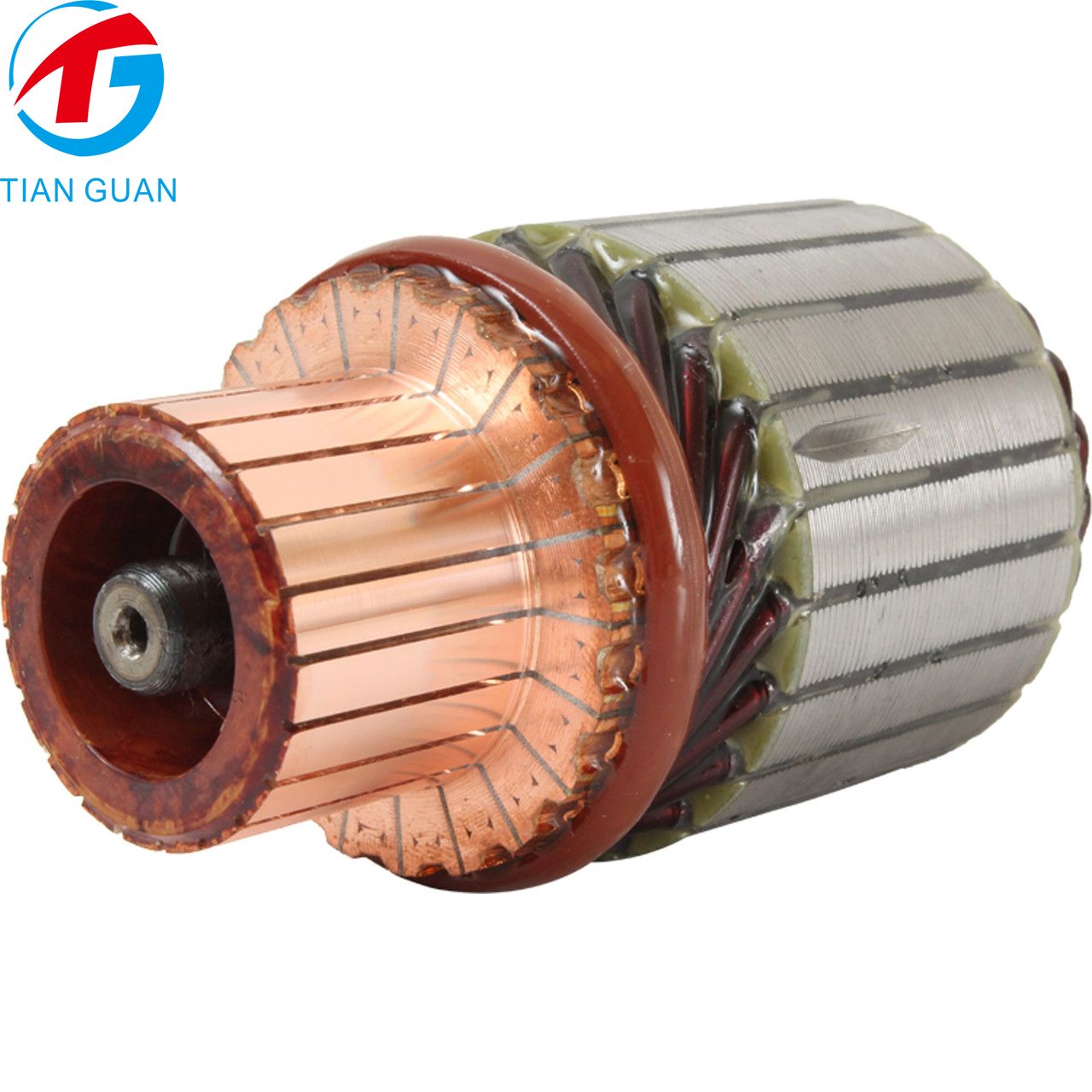

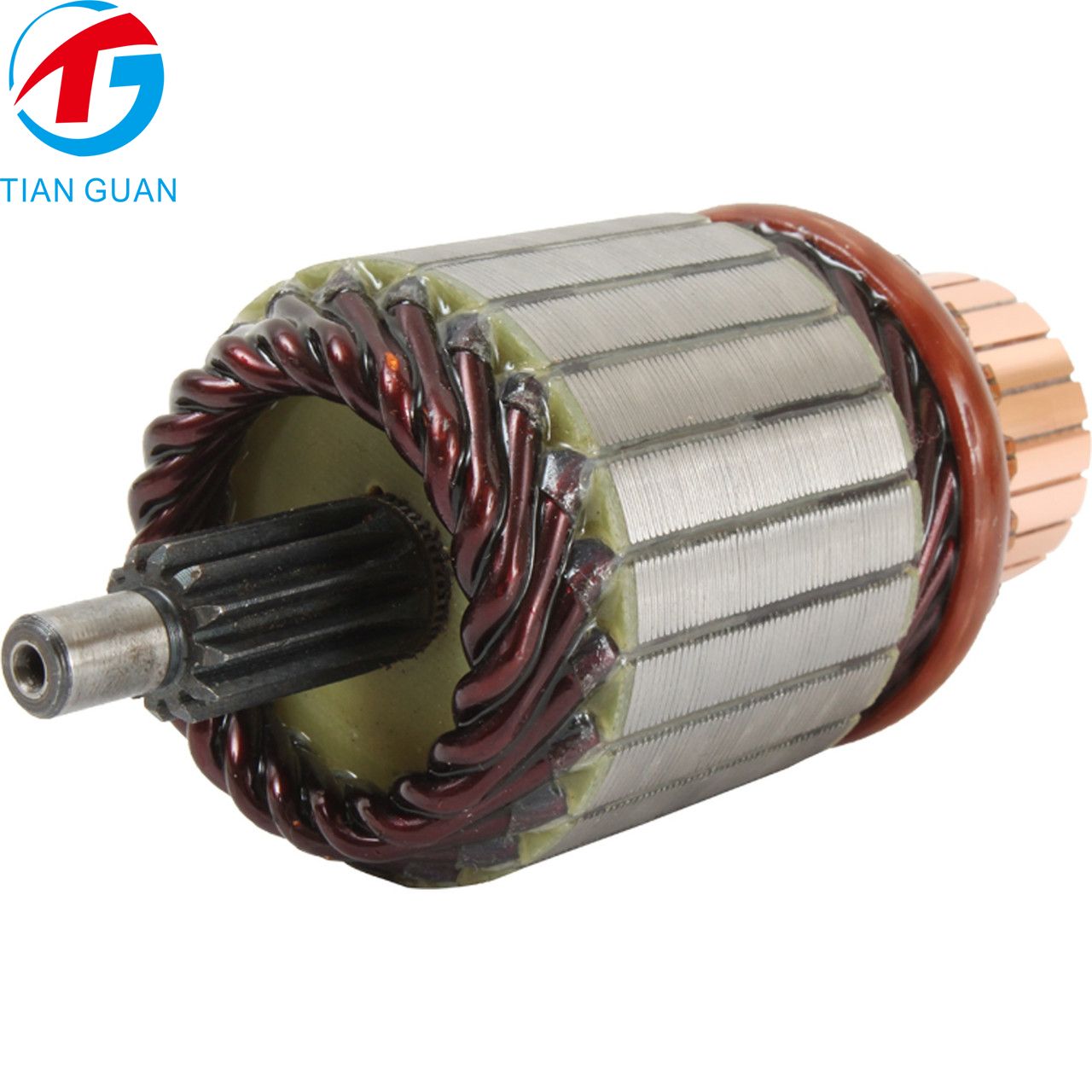

STG52789 Armature Starter, Voltage 12, Rotation CW, Delco PG260M

ITEM NO：STG52789

ARROWHEAD	SDR3002, 300-12093
DELCO	10475588
J & N	300-12093
LESTER (OLD)	3400
WAI	61-140

Product Specs

Item Condition	Aftermarket Part
Part Type	ARMATURE - STARTER
Voltage	12
Rotation	CW
Dimension	Volt 12; CE Length 12.4mm; CE Shaft Diam 9.7mm; Comm Diam 33mm; Core Diam 53mm; Core Length 38.5mm; DE Shaft Length 37.7mm; DE Shaft Diam 7.97mm; Pilot Length 12mm; # Comm Bars 21; OAL Arm 120.6mm; Spline Type Straight; # Splines 12;
Fits	Delco PG260M Series Starters

Send Email

Download attachment

STG52789 Armature Starter, Voltage 12, Rotation CW, Delco PG260M
