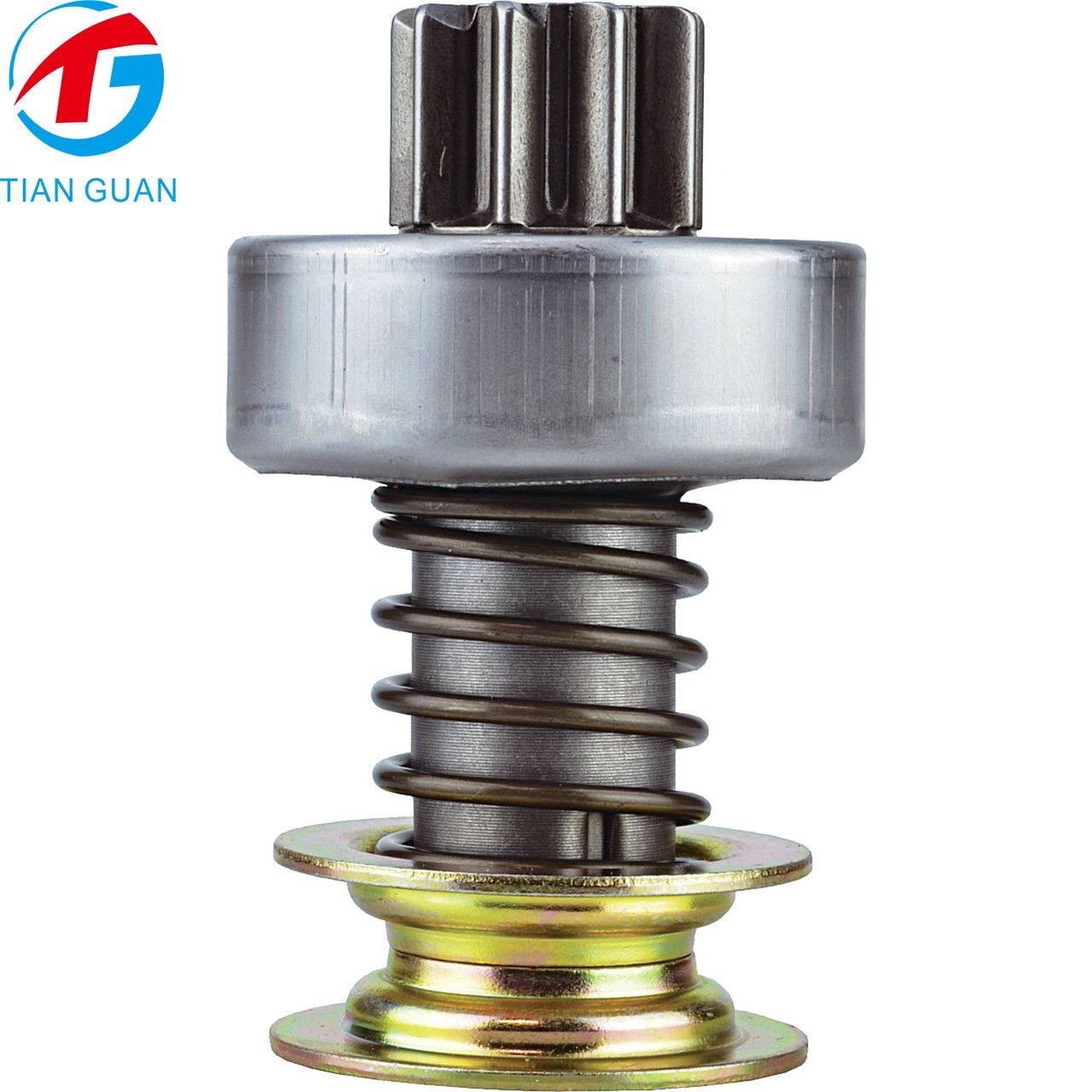

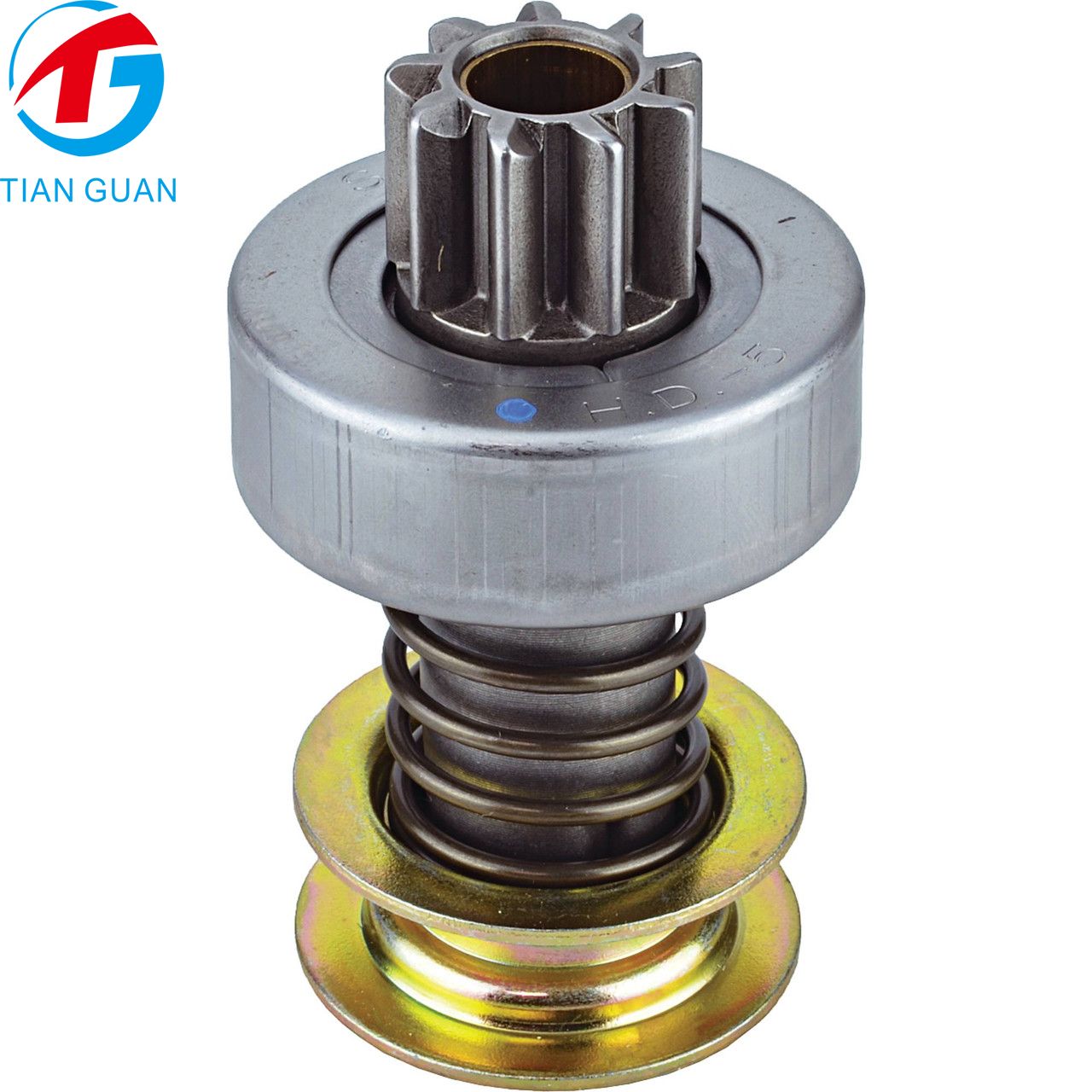

STG52393 Drive Assembly for Delco 1843041, 1856669, 1862058, 1873789 220-12097

ITEM NO：STG52393

Arrowhead	220-12097, 220-12457, SDR5064, SDR5065
Delco	1843041, 1856669, 1862058, 1873789, 1874156, 1904438, 1936959, D2000
Facet Drives	480048, 480463
Ford	SD225, SDG225
J&N Electrical Products	220-12097R, 220-12457
Prestolite	18-3, MAX3098A
Zen S.A.	1.01.0003.0

Product Specs

Item Condition	Aftermarket Part
Description	Drive Assembly
Quality Type	Premium (USA)
Condition	New
Rotation Direction	Clockwise
ID	0.563"
ID	14.300 mm
Gear OD	1.134"
Gear OD	28.800mm
Length	3.827"
Length	97.200 mm
Number Of Teeth	9
Number Of Splines	3
Splines Type	Straight
Drive Type	Roller
Wet Clutch Seal	FALSE
