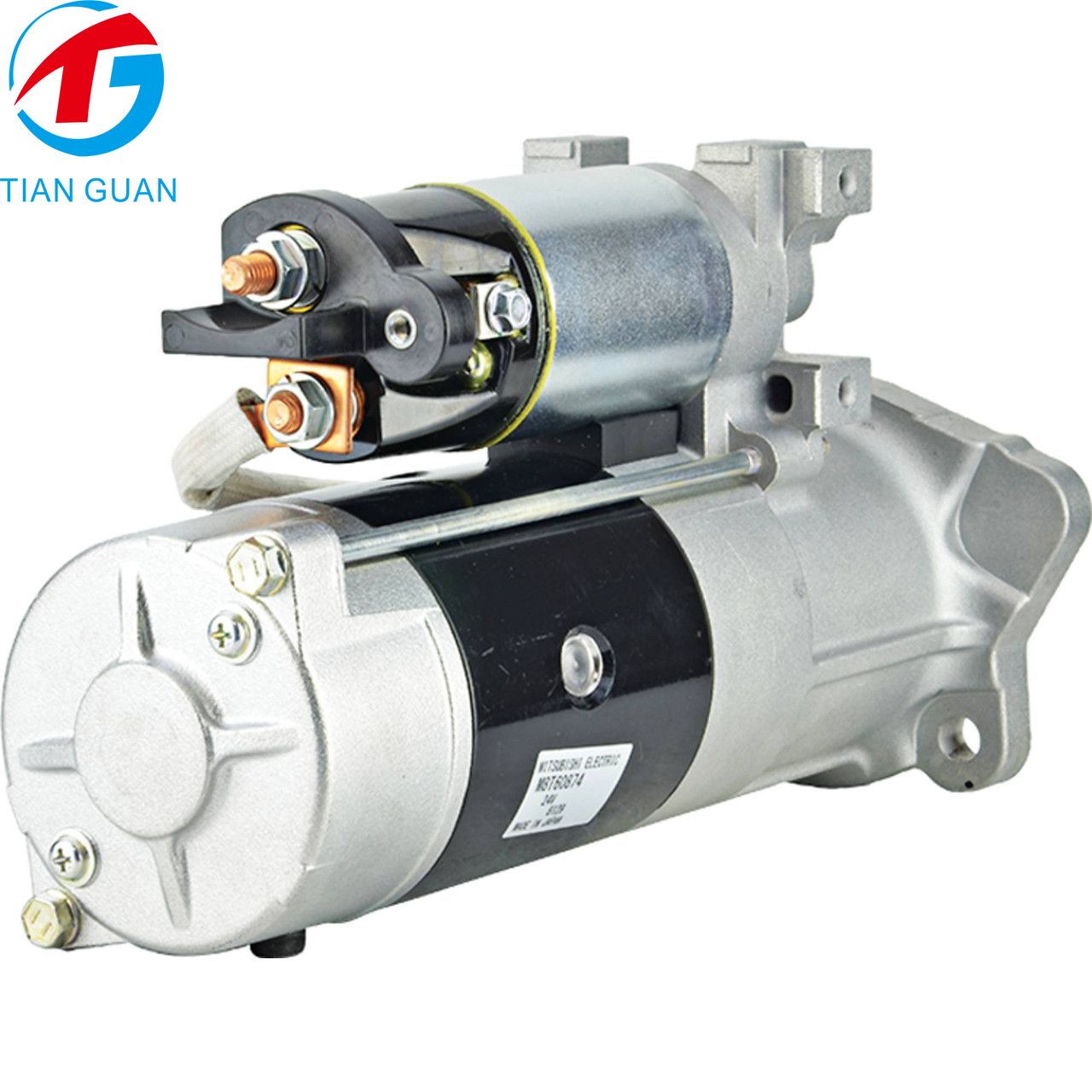

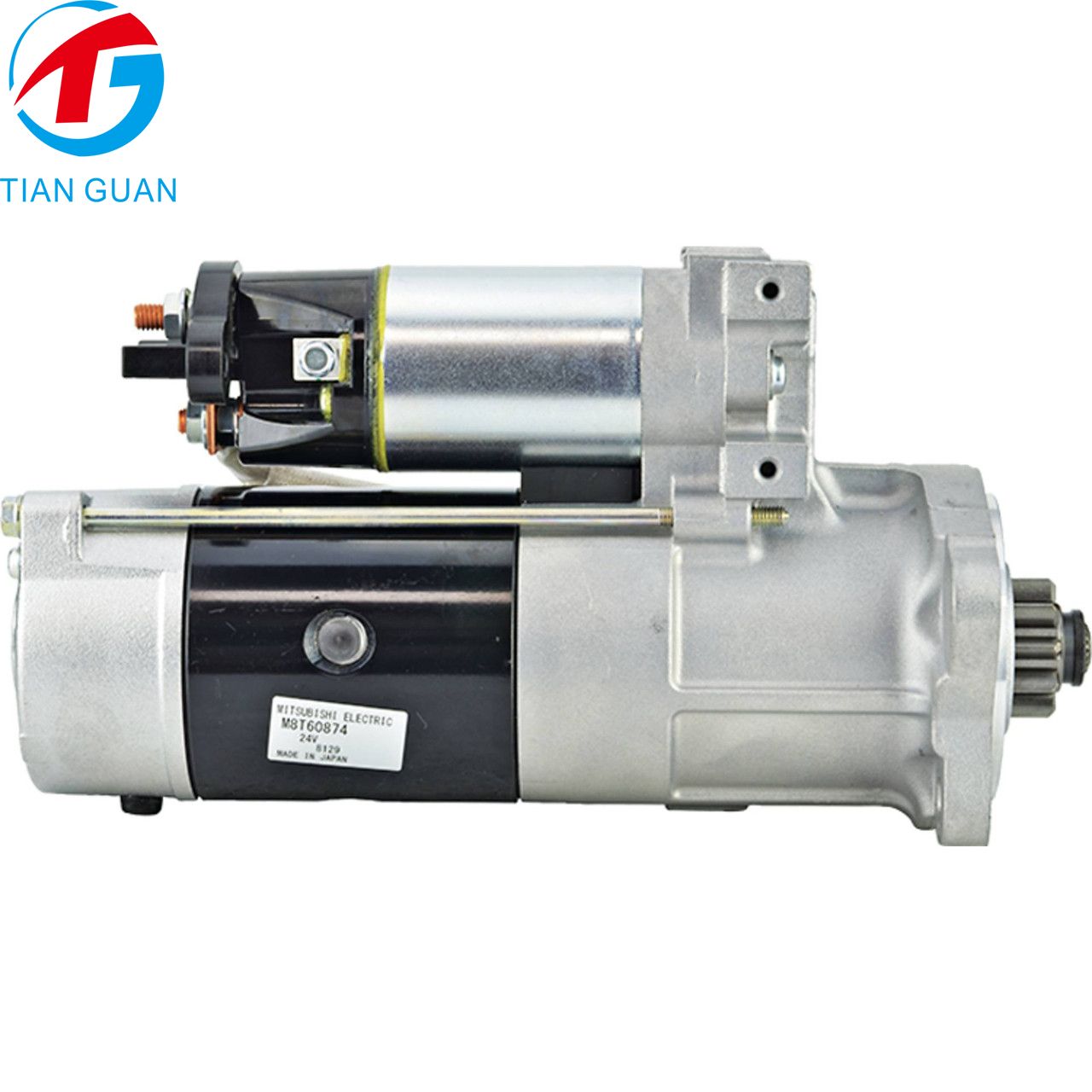

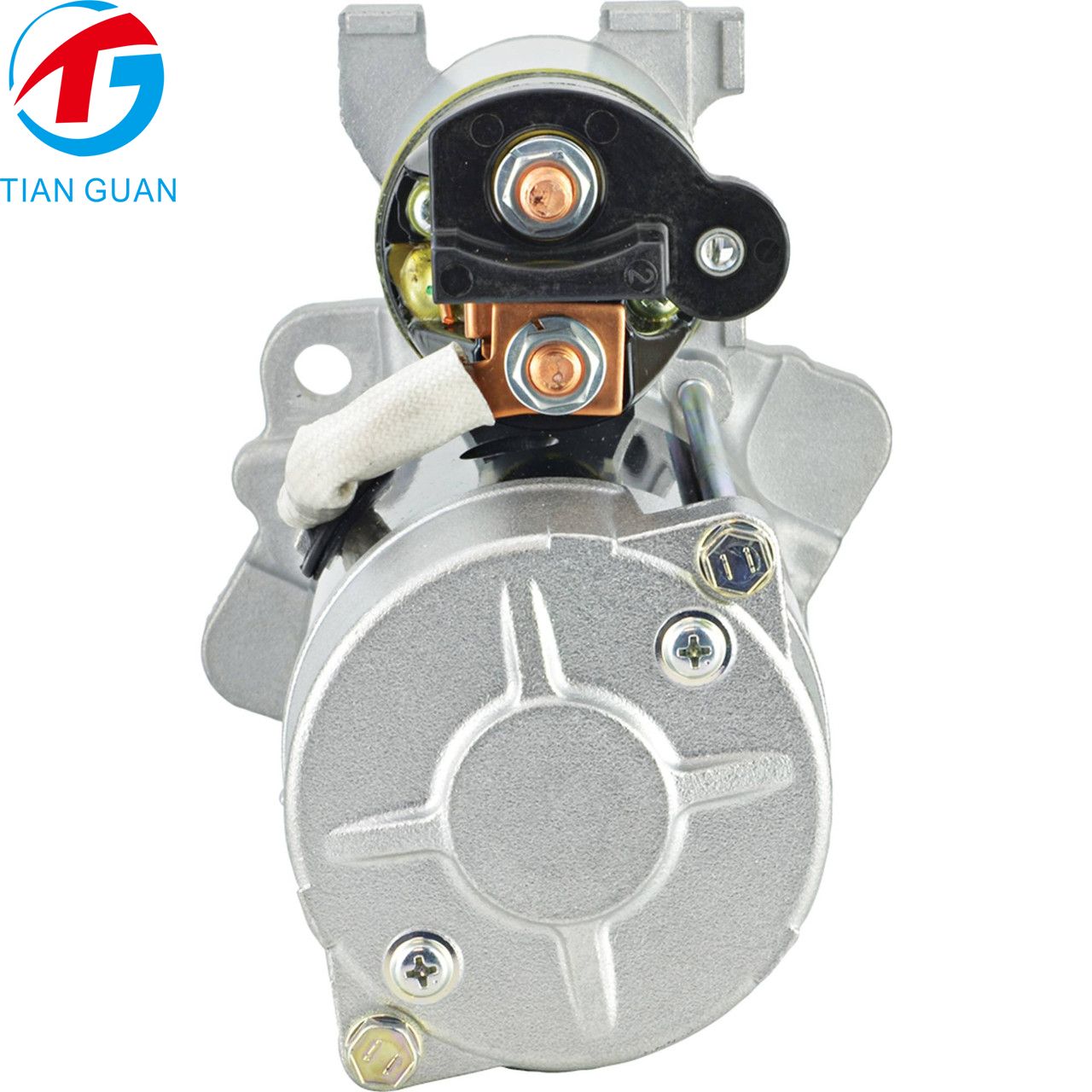

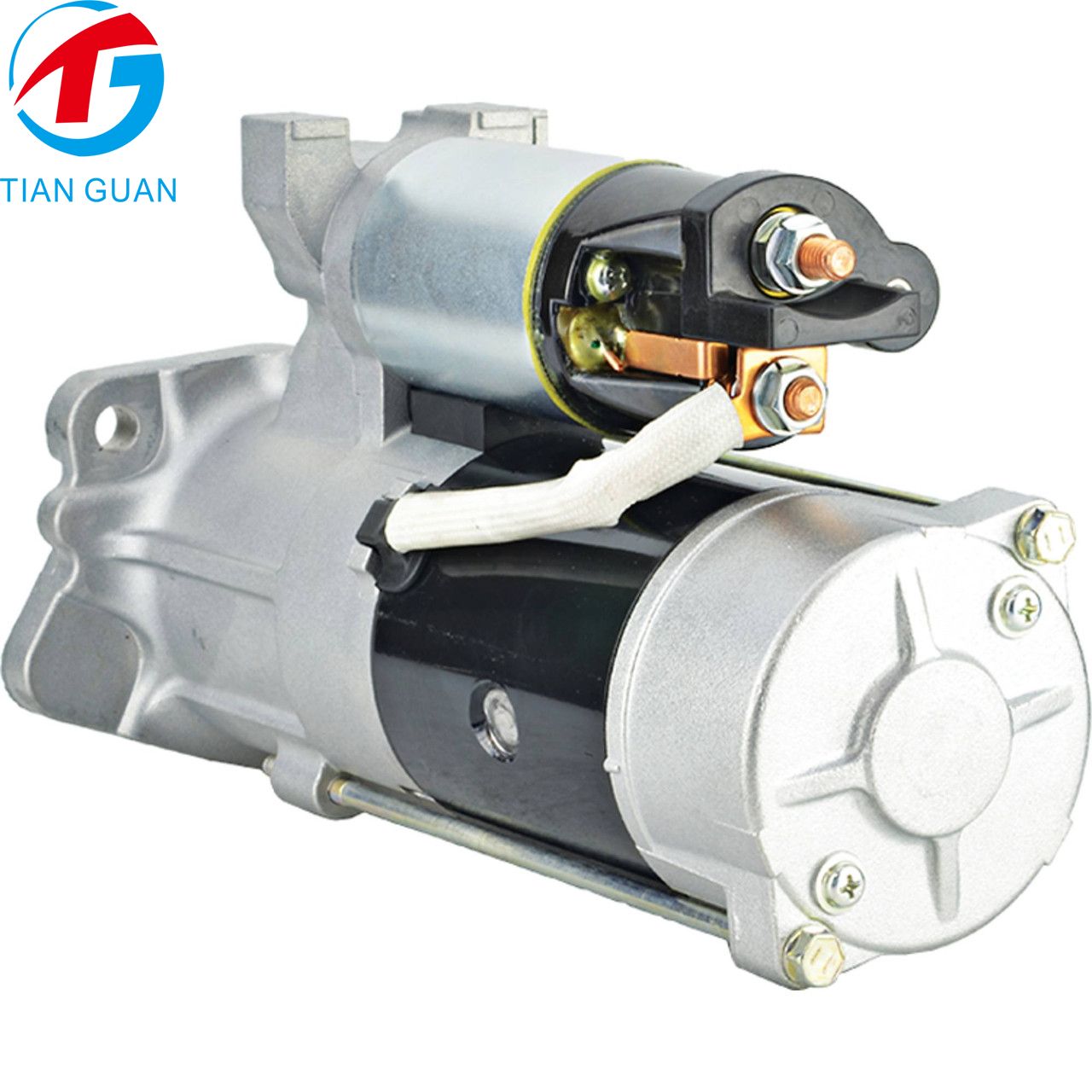

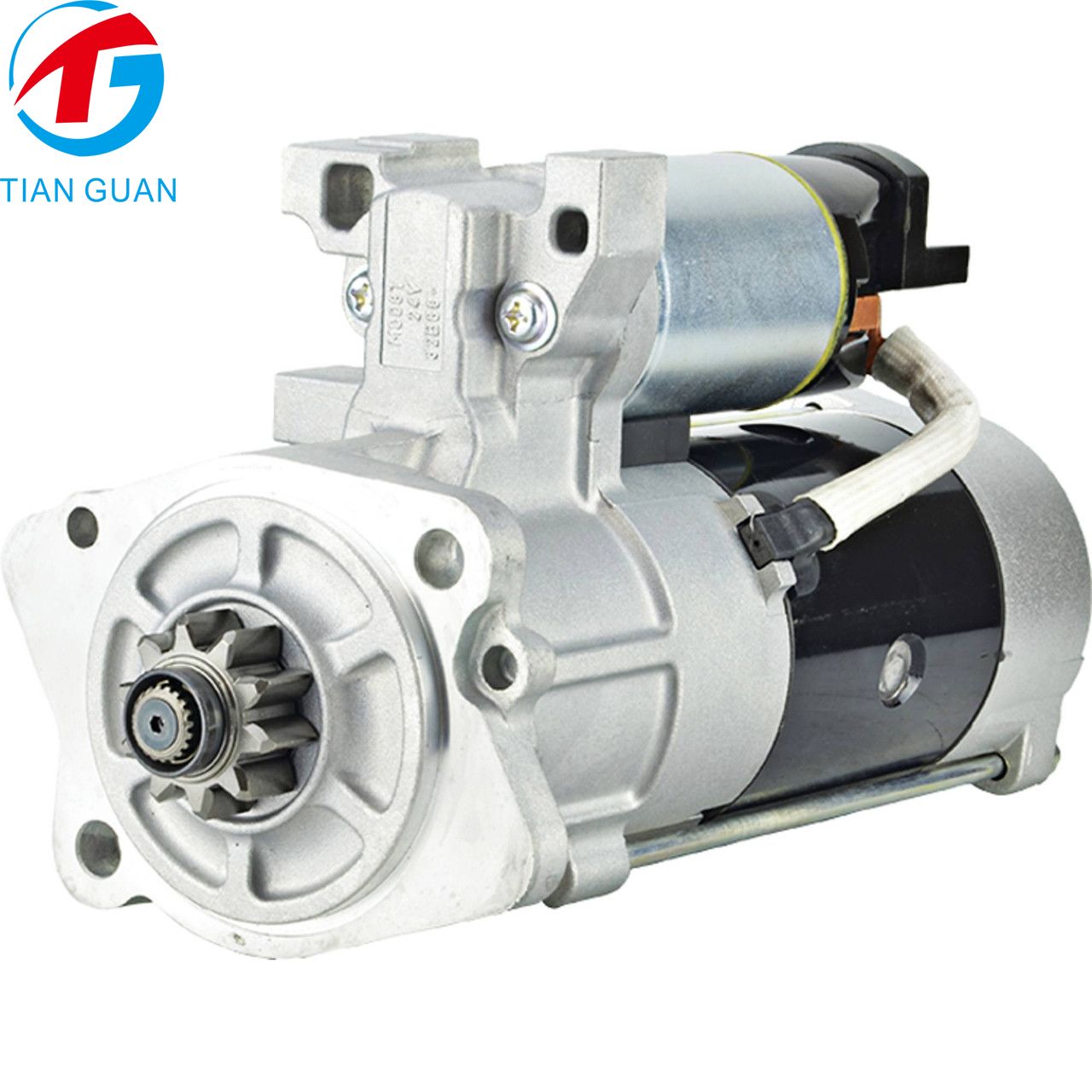

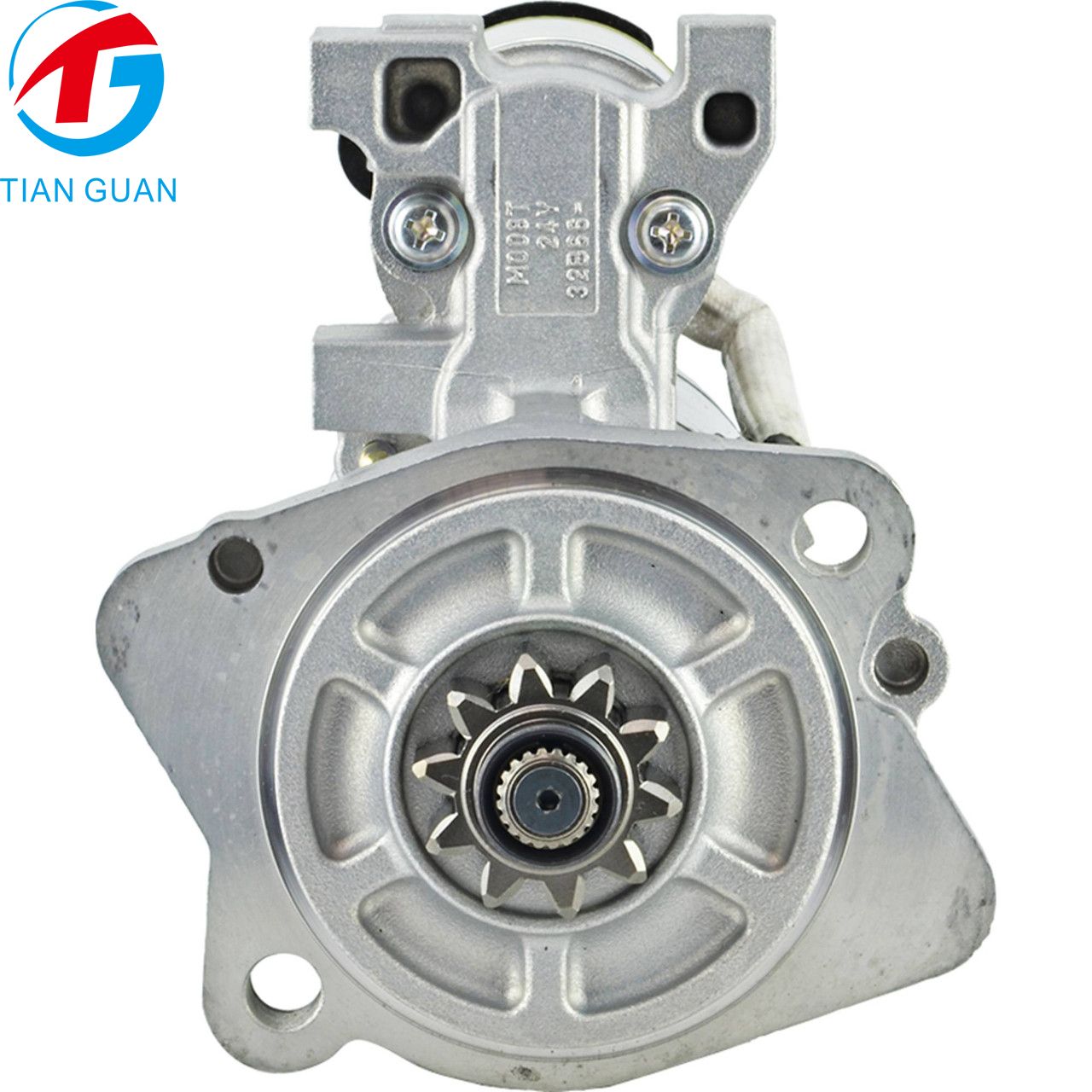

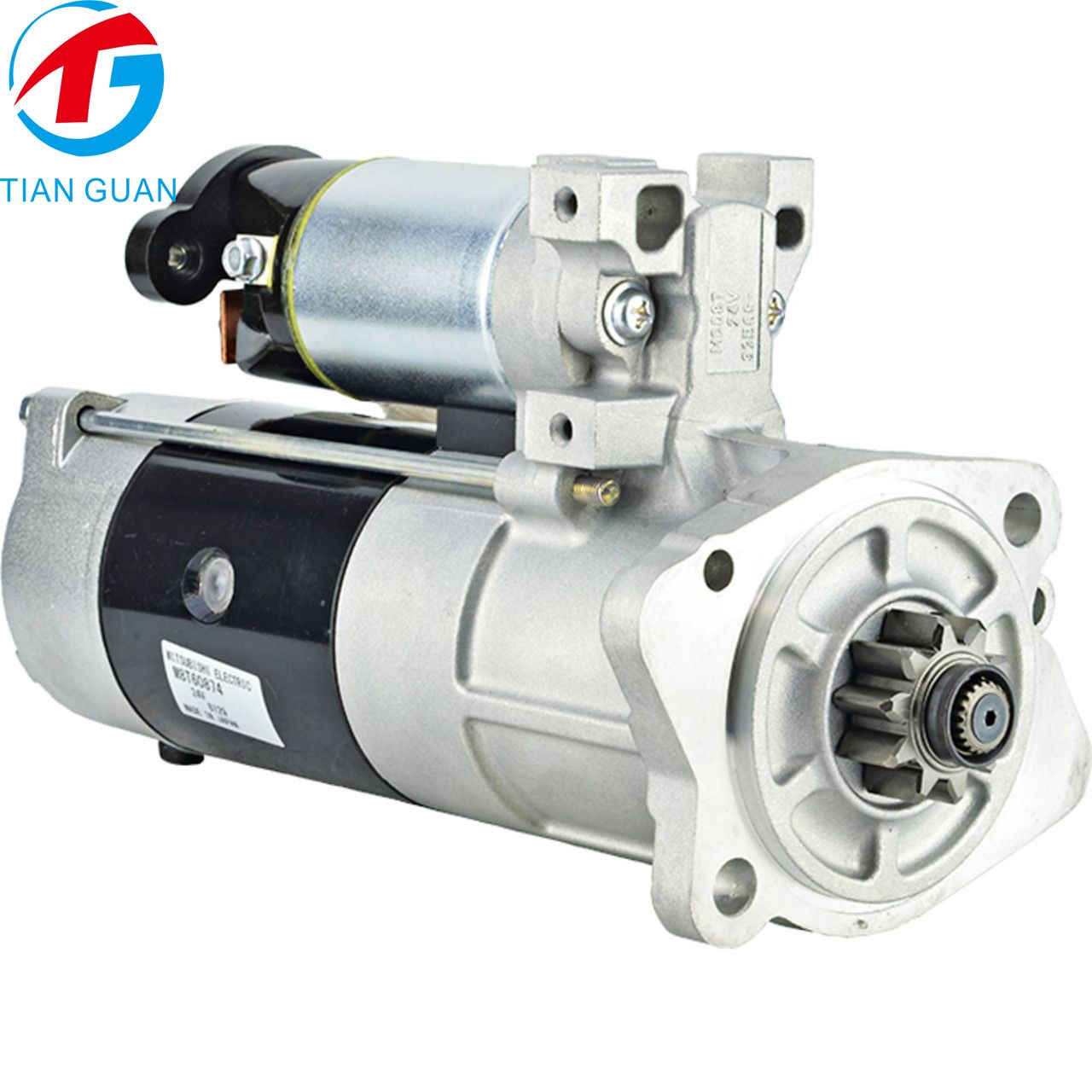

STG52392 Starter for Caterpillar 311B, 312B L, 312B 1996-2001, 311C 2001 MIS-M8T60874
ITEM NO：STG52392
ArrowheadM8T60874
MitsubishiM008T60874, M8T60871, M8T60874

Product Specs

Item ConditionAftermarket Part
DescriptionStarter
Volt24
Power5 kw
HP6.705
ConditionRemanufactured
Rotation DirectionClockwise
Electric Starter TypePlanetary Gear Reduction (PLGR)
Number Of Teeth10
Gear OD1.539"
Gear OD39.100mm
Length11.339"
Length288 mm
Mount Hole Id 110.800mm
Mount Hole 1 TypeUnthreaded
Mount Hole 2 TypeUnthreaded
Mounting Ear Distance 1105mm
Mounting Ear Distance 14.134"
Send Email
Download attachment

STG52392 Starter for Caterpillar 311B, 312B L, 312B 1996-2001, 311C 2001 MIS-M8T60874

MAKE TYPE MODEL YEAR ENGINE
Caterpillar311B 3061996, 1997, 1998, 1999, 2000, 2001
Caterpillar311B Cat. 3061996, 1997, 1998, 1999, 2000, 2001
Caterpillar311C 3062001
Caterpillar311C Cat. 306
Caterpillar312B L 3061996, 1997, 1998, 1999, 2000, 2001
Caterpillar312B L Cat. 3061996, 1997, 1998, 1999, 2000, 2001
Caterpillar312B 3061996, 1997, 1998, 1999, 2000, 2001
Caterpillar312B Cat. 3061996, 1997, 1998, 1999, 2000, 2001
Caterpillar312C L 3062001
Caterpillar312C L Cat. 306
Caterpillar312C 3062001
Caterpillar312C Cat. 306
Caterpillar314C CR 3062002
Caterpillar314C CR Cat. 306
Caterpillar314C LCR 3062002
Caterpillar314C LCR Cat. 306
Caterpillar315C L 30642002
Caterpillar315C L Cat. 3064
Caterpillar315C 30642002
Caterpillar315C Cat. 3064
Caterpillar318C 3062002
Caterpillar318C Cat. 306
Caterpillar319C 3062005
Caterpillar319C Cat. 306
Caterpillar320B L 3061996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320B L Cat. 3061996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320B N 3061996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320B N Cat. 3061996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320B 3061996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320B Cat. 3061996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320C L 3061999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320C L Cat. 3061999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320C LRR 3061999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320C LRR Cat. 3061999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320C LU 3061999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320C LU Cat. 3061999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320C U 3061999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320C U Cat. 3061999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320C 3061999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320C Cat. 3061999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar320D L 3062005
Caterpillar320D L Cat. 306
Caterpillar320D LRR 3062005
Caterpillar320D LRR Cat. 306
Caterpillar320D RR 3062005
Caterpillar320D RR Cat. 306
Caterpillar320D 3062005
Caterpillar320D Cat. 306
Caterpillar321B LCR 3061999
Caterpillar321B LCR Cat. 306
Caterpillar321C LCR 3062003
Caterpillar321C LCR Cat. 306
Caterpillar323D L 3062005
Caterpillar323D L Cat. 306
Caterpillar323D LN 3062005
Caterpillar323D LN Cat. 306
Caterpillar323D S 3062005
Caterpillar323D S Cat. 306
Caterpillar323D 3062005
Caterpillar323D Cat. 306
CaterpillarE200B Mitsubishi S6K-T Engin1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
CaterpillarE200B S6K-1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
CaterpillarEL200B Mitsubishi S6K-T Engin1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
CaterpillarEL200B S6K-1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
