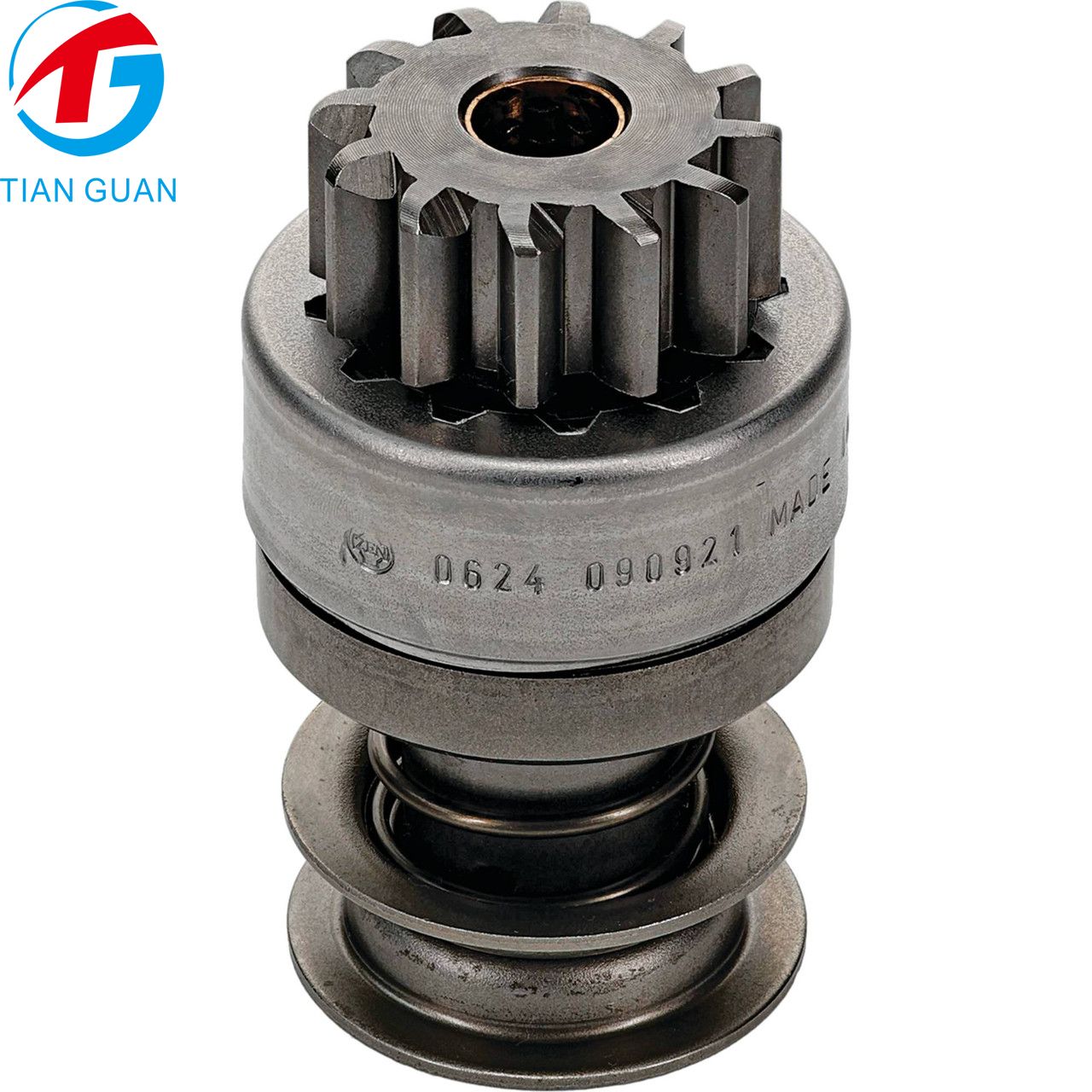

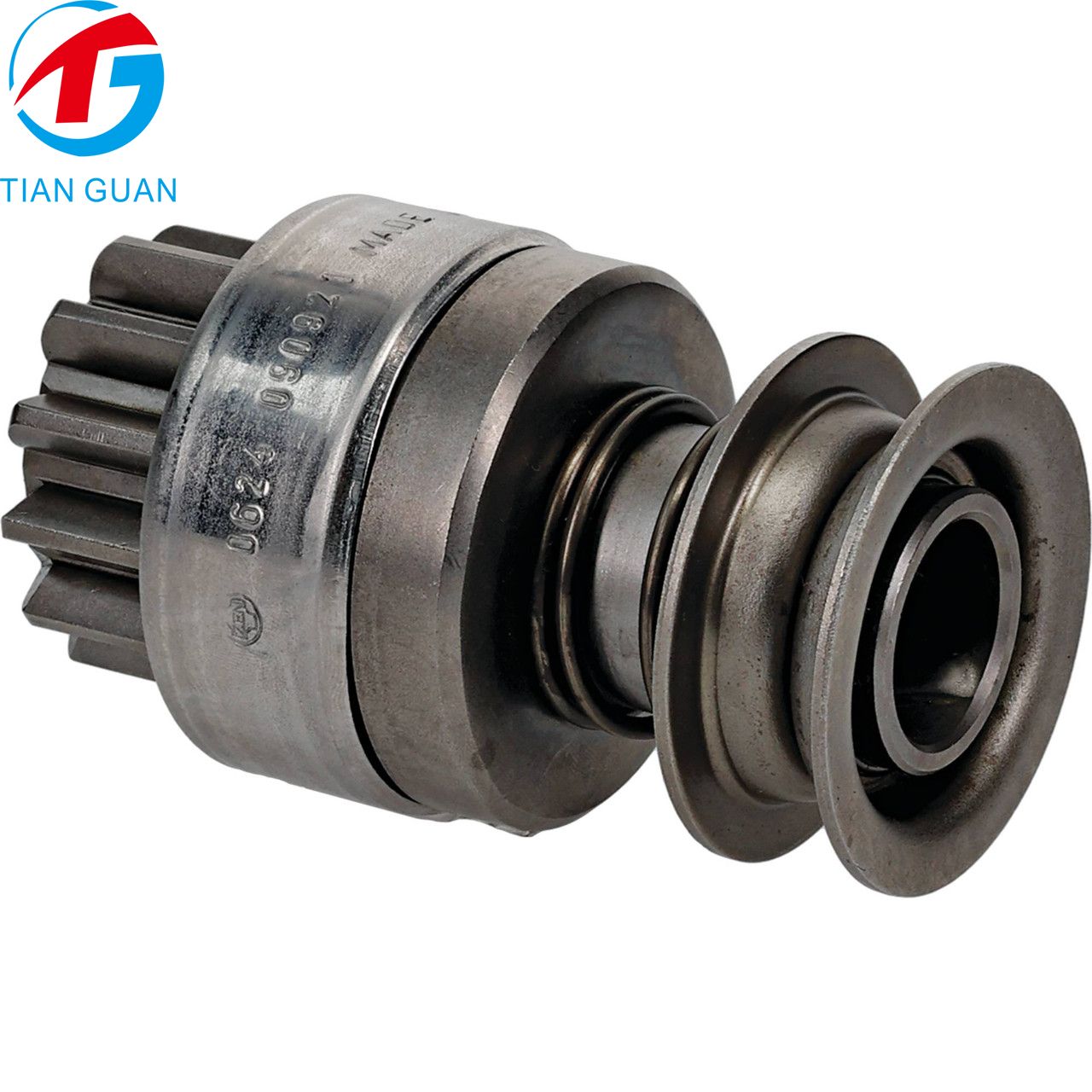

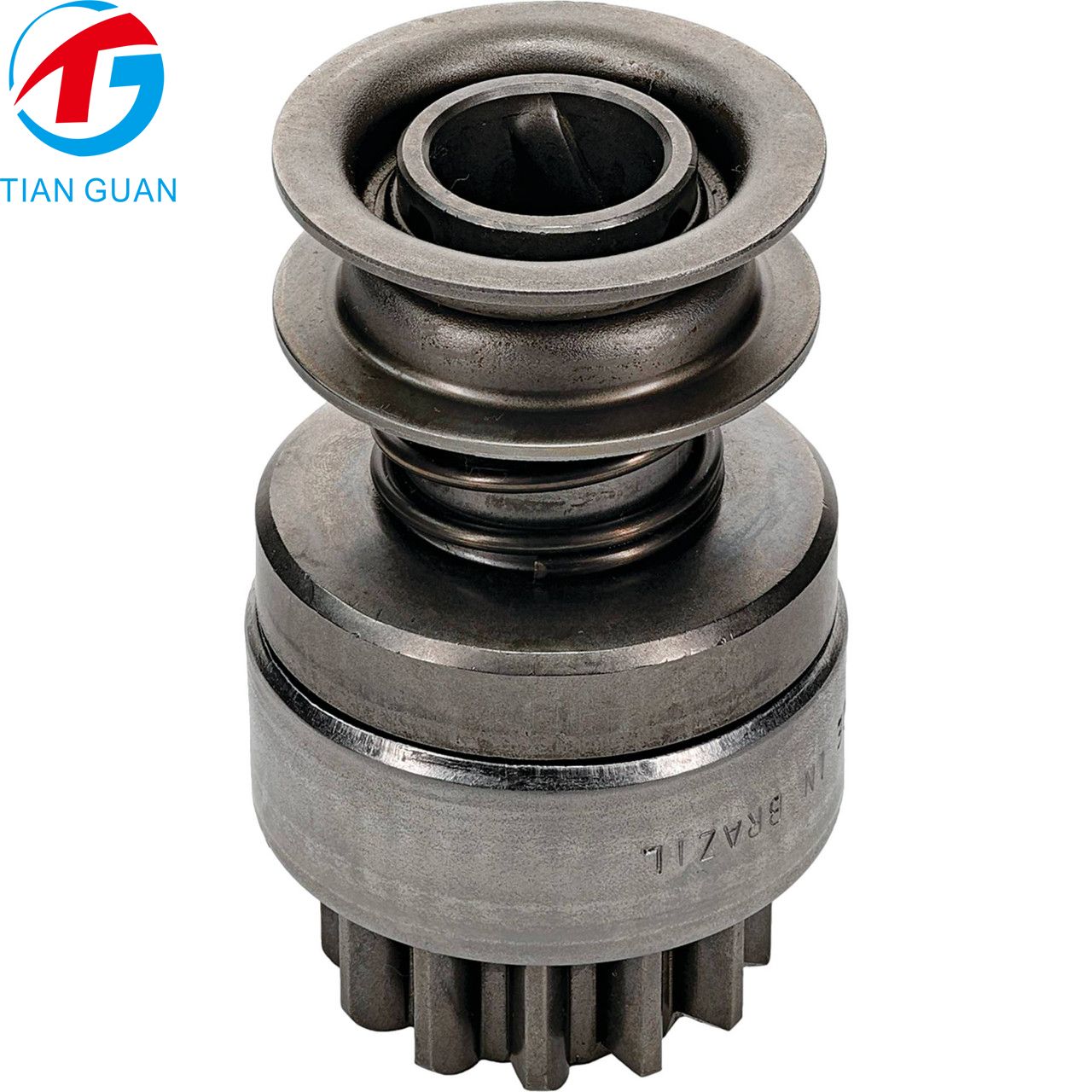

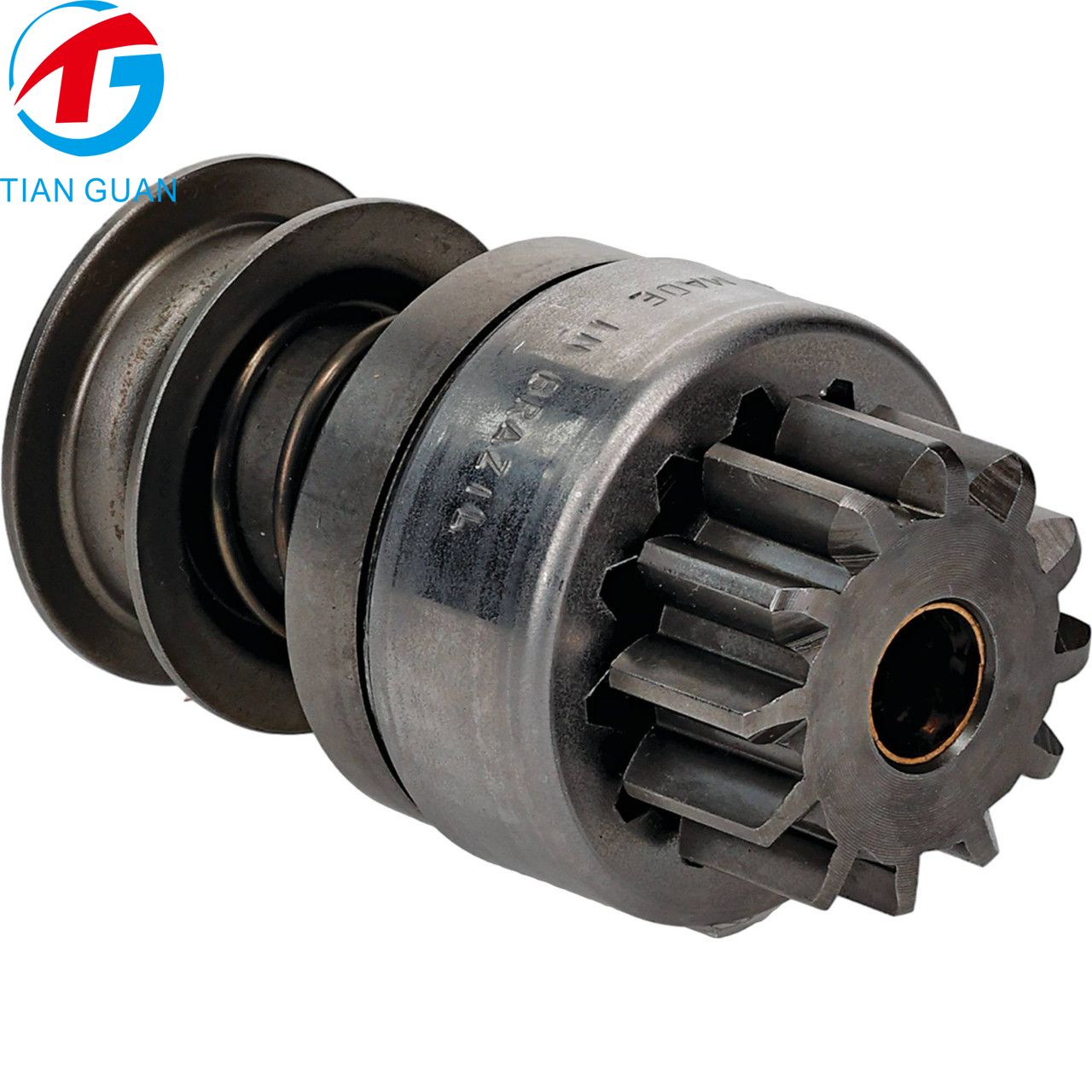

STG52252 Drive Assembly for J&N 220-12022, 220-12022R 220-12243

ITEM NO：STG52252

ARROWHEAD	11-DE338-2R, 4-338-DR, SDR5073, SDR5153, ZN0624, ZN0858
CATERPILLAR	7X1953
DELCO	1985262
FACET DRIVES	10624, 10640, 5-0624
J&N ELECTRICAL PRODUCTS	220-12022, 220-12022R, 220-12243, 220-12289, 220-12294, 220-12332, 220-12348
ZEN S.A.	0624, 0858, 1.01.0624.0, 1.01.0858.0, 1.01.624

Product Specs

Item Condition	Aftermarket Part
Description	Drive Assembly
QUALITY TYPE	Premium (Brazil)
CONDITION	New
ROTATION DIRECTION	Clockwise
ID	0.563"
ID	14.300 mm
GEAR OD	1.819"
GEAR OD	46.200mm
LENGTH	3.906"
LENGTH	99.200 mm
NUMBER OF TEETH	12
NUMBER OF SPLINES	3
SPLINES TYPE	Spiral
DRIVE TYPE	Double Roller
WET CLUTCH SEAL	FALSE
