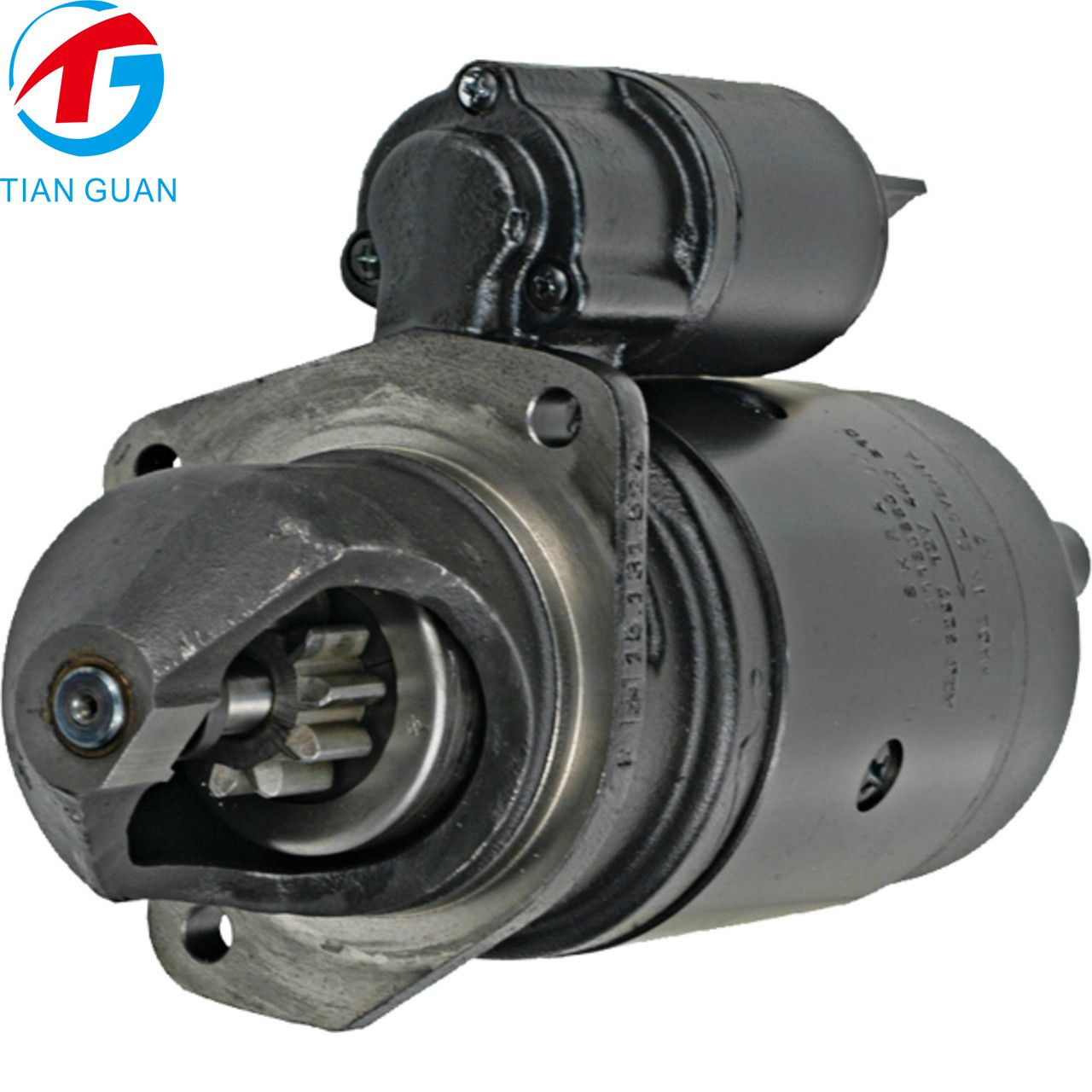

STG52212 Starter for Hino EH700 T, EH700 1986-1997, FD2218 (FD5H), FD2218LP MAH-MS365

ITEM NO：STG52212

Arrowhead	IS0663
Delco	10461626
Denso	028000-3290, 028000-3291, 028000-3292, 9702800-329
J&N Electrical Products	410-52110
Mahle	11.130.663, 11.130.860, AZJ3215, AZJ3297, IS0663, MS365

Product Specs

Item Condition	Aftermarket Part
Description	Starter
Family	Letrika/MAHLE AZJ
Volt	12
Power	4 kw
Hp	5.364
Condition	New
Rotation Direction	Clockwise
Electric Starter Type	Direct Drive (DD)
Number Of Teeth	10
Gear OD	1.567"
Gear OD	39.800mm
Length	237 mm
Length	9.331"
Mount Hole ID 1	10mm
Mount Hole 1 Type	Unthreaded
Mount Hole 2 Type	Unthreaded
Mount Hole ID 3	10mm
Mount Hole 3 Type	Unthreaded
Registry OD	3.504"
Registry OD	89mm
Bolt Hole Center To Center 90Mm

Send Email

Download attachment

STG52212 Starter for Hino EH700 T, EH700 1986-1997, FD2218 (FD5H), FD2218LP MAH-MS365

MAKE	TYPE	MODEL	YEAR	ENGINE
Hino		EH700 T	6cyl 393ci 6.4	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Hino		EH700	6400cc, 6.4L/393CI 6-Cyl	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Hino		EH700T	6400cc, 6.4L/393CI 6-Cyl	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Hino		FC	4.0L - W04	1988, 1989, 1990
Hino		FC	6.0L - W06	1984, 1985, 1986, 1987, 1988
Hino		FC	6.0L - W06	1989, 1990
Hino		FC	4000cc, 4L W04D	1988, 1989, 1990
Hino		FC	6000cc, 6L W06D	1989, 1990
Hino		FD16	6.0L - WO6	1986, 1987
Hino		FD16	5759cc, 5.8L/351CI L6 W06E	1986, 1987
Hino		FD17	6.8L - HO7	1988, 1989, 1990, 1991
Hino		FD17	6728cc, 6.7L/410CI L6 H07C	1988, 1989, 1990, 1991
Hino		FD20	6.5L - HO6C-	1992
Hino		FD20	6485cc, 6.5L/396CI L6 H06C-T	1992
Hino		FD2218 (FD5H)	6.5L - HO6C-	1993, 1994, 1995, 1996, 1997
Hino		FD2218	6485cc, 6.5L/396CI L6 H06C-T	1993, 1994, 1995, 1996, 1997
Hino		FD2218LP (FD5H)	6.5L - HO6C-	1993, 1994, 1995, 1996, 1997
Hino		FD2218LP	6485cc, 6.5L/396CI L6 H06C-T	1993, 1994, 1995, 1996, 1997
Hino		FD5H	6500cc, 6.5L HO6C-T	1993, 1994, 1995, 1996, 1997
Hino		FE16	6.0L - WO6	1986, 1987
Hino		FE16	5759cc, 5.8L/351CI L6 W06E	1986, 1987
Hino		FE17	6.8L - HO7	1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Hino		FE17	6728cc, 6.7L/410CI L6 H07C	1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Hino		FE19	6.5L - HO6C-	1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Hino		FE19	6485cc, 6.5L/396CI L6 H06C-T	1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Hino		FE20	6.5L - HO6C-	1992
Hino		FE20	6485cc, 6.5L/396CI L6 H06C-T	1992
Hino		FE2618 (FE5H)	6.5L - HO6C-	1993, 1994, 1995, 1996, 1997
Hino		FE2618	6485cc, 6.5L/396CI L6 H06C-T	1993, 1994, 1995, 1996, 1997
Hino		FE3020 (FE4H)	6.5L - HO6C-	1993, 1994, 1995, 1996, 1997
Hino		FE3020	6500cc, 6.5L HO6C-T	1993, 1994, 1995, 1996, 1997
Hino		FE4H	6500cc, 6.5L HO6C-T	1993, 1994, 1995, 1996, 1997
Hino		FE5H	6500cc, 6.5L HO6C-T	1993, 1994, 1995, 1996, 1997
Hino		FF17	6.8L - HO7	1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Hino		FF17	6728cc, 6.7L/410CI L6 H07C	1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Hino		FF19	6.5L - HO6C-	1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Hino		FF19	6485cc, 6.5L/396CI L6 H06C-T	1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Hino		FF20	6.5L - HO6C-	1992
Hino		FF20	6485cc, 6.5L/396CI L6 H06C-T	1992
Hino		FF23	6.5L - HO6C-	1992
Hino		FF23	6485cc, 6.5L/396CI L6 H06C-T	1992
Hino		FF3018 (FF4H)	6.5L - HO6C-	1993, 1994, 1995, 1996, 1997
Hino		FF3018	6485cc, 6.5L/396CI L6 H06C-T	1993, 1994, 1995, 1996, 1997
Hino		FF3020 (FF4H)	6.5L - HO6C-	1993, 1994, 1995, 1996, 1997
Hino		FF3020	6485cc, 6.5L/396CI L6 H06C-T	1993, 1994, 1995, 1996, 1997
Hino		FF4H	6500cc, 6.5L HO6C-T	1993, 1994, 1995, 1996, 1997
Hino		FG19	6.5L - HO6C-	1984, 1985
Hino		FG19	6485cc, 6.5L/396CI L6 H06C-T
Hino		FG19	6485cc, 6.5L/396CI L6 H06C-T	1985
Hino		GC17	6.8L - HO7	1990, 1991
Hino		GC17	6728cc, 6.7L/410CI L6 H07C	1990, 1991
Hino		GC20	6.5L - HO6C-	1992
Hino		GC20	6485cc, 6.5L/396CI L6 H06C-T	1992
Hino		SF17	6.8L - HO7	1988, 1989, 1990, 1991
Hino		SF17	6728cc, 6.7L/410CI L6 H07C	1988, 1989, 1990, 1991
Hino		SG19	6.5L - HO6C-	1986, 1987, 1988, 1989, 1990, 1991
Hino		SG19	6485cc, 6.5L/396CI L6 H06C-T	1986, 1987, 1988, 1989, 1990, 1991
Hino		SG1H	6500cc, 6.5L HO6C-T	1993, 1994, 1995, 1996, 1997
Hino		SG1HD	6500cc, 6.5L HO6C-T	1993, 1994, 1995, 1996, 1997
Hino		SG20	6.5L - HO6C-	1992
Hino		SG20	6485cc, 6.5L/396CI L6 H06C-T	1992
Hino		SG23	6.5L - HO6C-	1987, 1988, 1989, 1990, 1991, 1992
Hino		SG23	6485cc, 6.5L/396CI L6 H06C-T	1987, 1988, 1989, 1990, 1991, 1992
Hino		SG3320 (SG4H)	6.5L - HO6C-	1993, 1994, 1995, 1996, 1997
Hino		SG3320	6485cc, 6.5L/396CI L6 H06C-T	1993, 1994, 1995, 1996, 1997
Hino		SG3323 (SG1H)	6.5L - HO6C-	1993, 1994, 1995, 1996, 1997
Hino		SG3323	6485cc, 6.5L/396CI L6 H06C-T	1993, 1994, 1995, 1996, 1997
Hino		SG5523 (SG1HD)	6.5L - HO6C-	1993, 1994, 1995, 1996, 1997
Hino		SG5523	6485cc, 6.5L/396CI L6 H06C-T	1993, 1994, 1995, 1996, 1997
John Deere		1085	Al
John Deere		1085
John Deere		2056	Al
John Deere		2056	Al
John Deere		2058	Al
John Deere		2058	Al
John Deere		2064	Al
John Deere		2064	Al
John Deere		2066	Al
John Deere		2066	Al
John Deere		4040	6-404 Diesel , Diese	1978, 1979, 1980, 1981, 1982
John Deere		4040	JD 6-404 Ds	1978, 1979, 1980, 1981, 1982
John Deere		4050	6-466 Diesel , Diese	1983, 1984, 1985, 1986, 1987, 1988
John Deere		4050	JD 6-466 Ds	1983, 1984, 1985, 1986, 1987, 1988
John Deere		4055	JD 6-466 Ds	1989, 1990, 1991, 1992
John Deere		410D	4045 Diese
John Deere		4240	6-466 Diesel , Diese	1978, 1979, 1980, 1981, 1982
John Deere		4240	JD 6-466 Ds	1978, 1979, 1980, 1981, 1982
John Deere		4250	6-466 Diesel , Diese	1983, 1984, 1985, 1986, 1987, 1988
John Deere		4250	JD 6-466 Ds	1983, 1984, 1985, 1986, 1987, 1988
John Deere		4255	JD 6-466 Ds	1989, 1990, 1991, 1992
John Deere		4350	JD 6-466 Ds
John Deere		4350
John Deere		4440	6-466 Diesel Turbocharged , Diese	1978, 1979, 1980, 1981, 1982
John Deere		4440	JD 6-466 Ds	1978, 1979, 1980, 1981, 1982
John Deere		444C	329 Diese	1982, 1983, 1984, 1985, 1986
John Deere		444D	329 Diese	1987, 1988
John Deere		4450	6-466 Diesel , Diese	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
John Deere		4450	JD 6-466 Ds	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
John Deere		4455	JD 6-466 Ds	1989, 1990, 1991, 1992
John Deere		4455	Made in Mexic
John Deere		4555	JD 6-466 Ds	1989, 1990, 1991, 1992
John Deere		4560	JD 6-466 Ds	1992, 1993, 1994
John Deere		4640	6-466 Diesel , Diese	1978, 1979, 1980, 1981, 1982
John Deere		4640	JD 6-466 Ds	1978, 1979, 1980, 1981, 1982
John Deere		4650	JD 6-466 Ds	1983, 1984, 1985, 1986, 1987, 1988
John Deere		4755	JD 6-466 Ds	1989, 1990, 1991, 1992
John Deere		4760	JD 6-466 Ds	1992, 1993, 1994
John Deere		4840	6-466 Diesel , Diese	1979, 1980, 1981, 1982
John Deere		4840	JD 6-466 Ds	1979, 1980, 1981, 1982
John Deere		4850	JD 6-466 Ds	1983, 1984, 1985, 1986, 1987, 1988
John Deere		4955	JD 6-466 Ds	1989, 1990, 1991, 1992
John Deere		4960	JD 6-466 Ds	1992, 1993, 1994
John Deere		500	Diesel Engine	1978, 1979, 1980, 1981, 1982, 1983
John Deere		510	JD 4-269 80HP Ds	1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere		510D	JD 4045T 95HP Ds
John Deere		5200	404 Diese	1974, 1975, 1976, 1977
John Deere		5200	404 Diesel , Diese	1974, 1975, 1976, 1977
John Deere		540E	4045 Diese
John Deere		5420	Al
John Deere		5420
John Deere		544	Al
John Deere		544
John Deere		5440	404 Diese	1977, 1978, 1979, 1980, 1981, 1982
John Deere		5440	404 Diesel , Diese	1977, 1978, 1979, 1980, 1981, 1982
John Deere		544C	414 Diese	1982, 1983, 1984, 1985, 1986
John Deere		544D	Al	1987, 1988
John Deere		544E	Al	1988, 1989, 1990, 1991, 1992
John Deere		544E	Al	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
John Deere		544G	6059 Diese
John Deere		544G	Al
John Deere		570	303 Diese	1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere		570A	329 Diese	1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere		5720	466 Diese	1982, 1983, 1984, 1985, 1986
John Deere		5730	466 Diese	1986, 1987, 1988, 1989, 1990, 1991, 1992
John Deere		5730	466 Diese	1986, 1987, 1988, 1989, 1990, 1991, 1992
John Deere		5830	466 Diese	1986, 1987, 1988, 1989, 1990, 1991, 1992
John Deere		5830	466 Diese	1986, 1987, 1988, 1989, 1990, 1991, 1992
John Deere		6059	Al
John Deere		6059	Al
John Deere		6059
John Deere		6068	Al
John Deere		6068	Al
John Deere		6068
John Deere		6076	Al
John Deere		6076	Al
John Deere		6076
John Deere		624E	Al	1988, 1989, 1990, 1991, 1992
John Deere		624G	Al
John Deere		640E	6068 Diese
John Deere		643	Al	1988, 1989, 1990, 1991, 1992, 1993
John Deere		643D	Al
John Deere		644C	Al	1982, 1983, 1984, 1985, 1986
John Deere		644C		1982, 1983, 1984, 1985, 1986
John Deere		644D	Al	1987, 1988
John Deere		644E	Al	1988, 1989, 1990, 1991, 1992
John Deere		644G	Al
John Deere		6466A / D / T	Al
John Deere		6466A / D / T	Al
John Deere		6466A
John Deere		6466D
John Deere		6466T
John Deere		6600	404 Diese	1979, 1980, 1981, 1982
John Deere		6600	404 Diesel , Diese	1979, 1980, 1981, 1982
John Deere		6602	404 Diese	1979, 1980, 1981, 1982
John Deere		6602	404 Diesel , Diese	1979, 1980, 1981, 1982
John Deere		6620	466 Diese	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
John Deere		6620	466 Diesel , Diese	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
John Deere		6622	466 Diese	1980, 1981, 1982, 1983, 1984, 1985
John Deere		6622	466 Diesel , Diese	1980, 1981, 1982, 1983, 1984, 1985
John Deere		690 / 690A	404 Diese	1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
John Deere		690B	404 Diese	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
John Deere		693B	Al	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
John Deere		710D	JD 6059T 115HP Ds
John Deere		740	466 Diese	1974, 1975, 1976, 1977, 1978, 1979
John Deere		740A	466 Diese	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
John Deere		740A	466 Diesel , Diese	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
John Deere		743	Al	1977, 1978, 1979, 1980, 1981, 1982, 1983
John Deere		743		1977, 1978, 1979, 1980, 1981, 1982, 1983
John Deere		743A	Al	1977, 1978, 1979, 1980, 1981, 1982, 1983
John Deere		743A		1977, 1978, 1979, 1980, 1981, 1982, 1983
John Deere		7700	404 Diese	1979, 1980, 1981, 1982
John Deere		7700	404 Diesel , Diese	1979, 1980, 1981, 1982
John Deere		7700	6-414 Diese
John Deere		7700	6-414 Diese
John Deere		7710	6-466 Diese
John Deere		7720	466 Diese	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
John Deere		7720	466 Diesel , Diese	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
John Deere		7722	466 Diese	1986, 1987, 1988, 1989
John Deere		7800	6-466 Diese
John Deere		7800	6-466 Diese
John Deere		7810	6-466 Diese
John Deere		8100	6-466 Diese
John Deere		8200	6-466 Diese
John Deere		8300	6-466 Diese
John Deere		8430	6-466 Diese	1975, 1976, 1977, 1978
John Deere		8440	6-466 Diese	1979, 1980, 1981, 1982
John Deere		8440	6-466 Diesel , Diese	1979, 1980, 1981, 1982
John Deere		8450	6-466 Diese	1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
John Deere		8560	6-466 Diese	1988, 1989, 1990, 1991, 1992
John Deere		8560	6-466 Diese	1988, 1989, 1990, 1991, 1992
John Deere		8820	466 Diese	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
John Deere		8820	466 Diesel , Diese	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
John Deere		9500	466 Diese	1989, 1990, 1991, 1992, 1993
John Deere		9500	466 Diese	1989, 1990, 1991, 1992, 1993
John Deere		9600	466 Diese	1989, 1990, 1991, 1992, 1993
John Deere		9600	466 Diese	1989, 1990, 1991, 1992, 1993
John Deere		9650	466 Diese	1989, 1990, 1991, 1992, 1993
John Deere		9940	466 Diese	1983, 1984, 1985, 1986
John Deere		9940	466 Diesel , Diese	1983, 1984, 1985, 1986
John Deere		9950	466 Diese	1987, 1988, 1989, 1990
John Deere		9950	466 Diesel , Diese	1987, 1988, 1989, 1990
John Deere		9960	466 Diese	1987, 1988, 1989, 1990, 1991, 1992, 1993
John Deere		9965	466 Diese
John Deere		9965	466 Diese
John Deere		CTS Combine	Al	1992, 1993, 1994
John Deere		CTS Combine	Al	1992, 1993, 1994
John Deere		JD444	329 Diese	1976, 1977, 1978, 1979, 1980, 1981
John Deere		JD500C	JD 80HP Ds	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
John Deere		JD544 / JD544A	414 Diese	1976, 1977, 1978, 1979, 1980, 1981
John Deere		JD544B	414 Diese	1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
Mercruiser	Model EH700 MIE (175 / 220HP)	HINO 6.5L - 393ci - 6cy	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Mercruiser	Model EH700 MIE (175 / 220HP)	HINO 6.5L - 393ci - 6cy	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Mercruiser	Model EH700 MIE	6500cc, 175HP 6.5L/393CI 6-Cyl Hino Diesel , Diesel	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Mercruiser	Model EH700 MIE	6500cc, 220HP 6.5L/393CI 6-Cyl Hino Diesel , Diesel	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Tug	TM-4900JD	John Deere Ds

tag :

STARTER MOTOR CATERPILLAR Cummins KOMATSU starter motor replacement cost togomotor Lombardini ALTERNATOR starter motor price Engine Motor manufacturers starter motors turbocharger manufacturers turbochargers solenoid valve piston motors Elevate Your Engine Performance with Premium Engin premium engine parts The Key Role of Piston Motors in Engine Performanc piston motor DAEWOO FIAT IVECO KIA Water Pump MTU MITSUBISHI ONAN TORO BOMAG YALE YANMAR : LAND ROVER LIEBHERR MAZDA HYUNDAI DAF MAN HONDA CHRYSLER Mercedes benz CITROEN LOVOL ISUZU BMW NEW HOLLAND HATZ GM BOBCAT KUBOTA PERKINS John deere CASE DEUTZ SCANIA FORD Audi VOLKSWAGEN SUZUKI Renault HARLEY-DAVIDSON NISSAN VOLVO JCB Hino Toyota JEEP

Mail consultation

Please feel free to give your inquiry in the form below. We will reply you in 24 hours.
