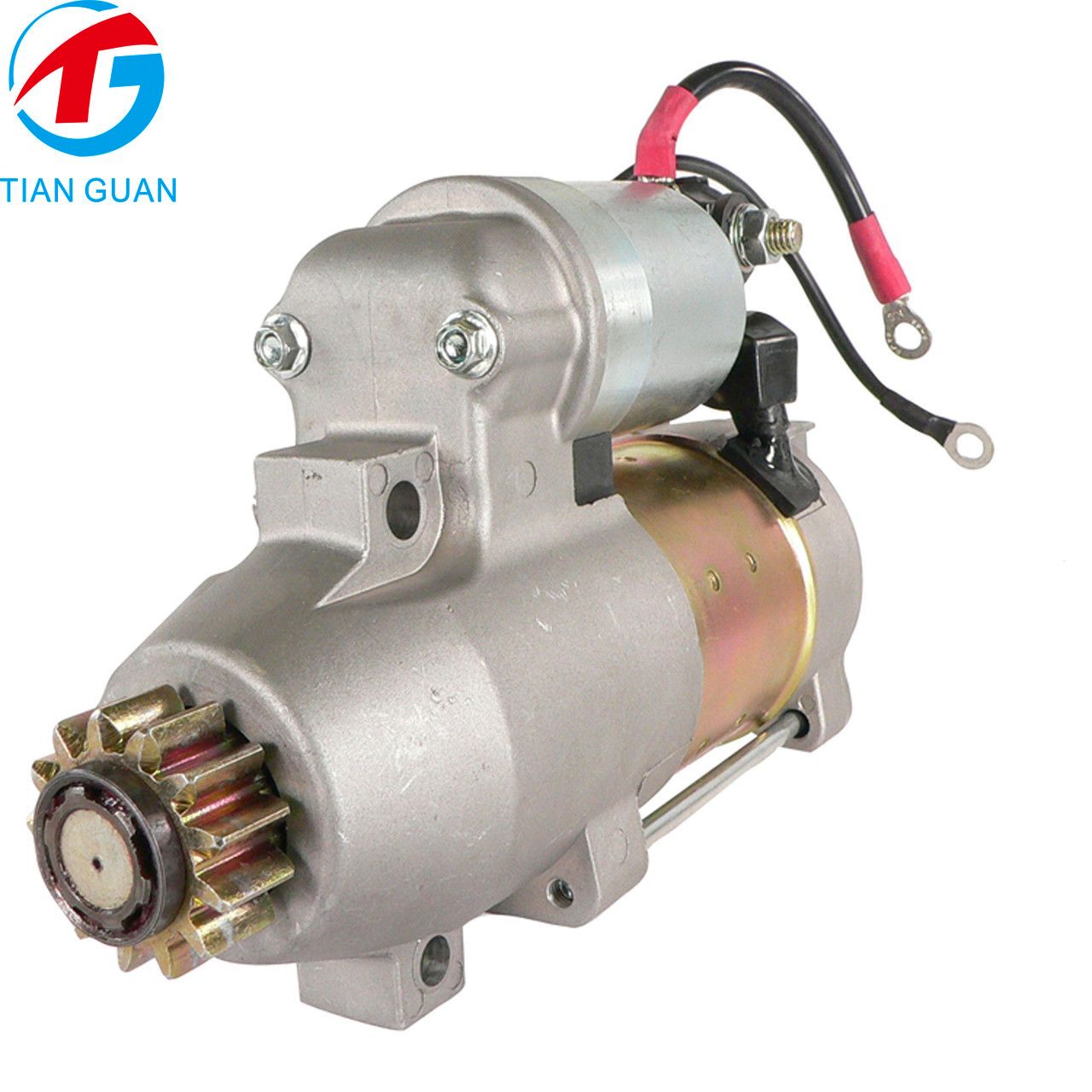

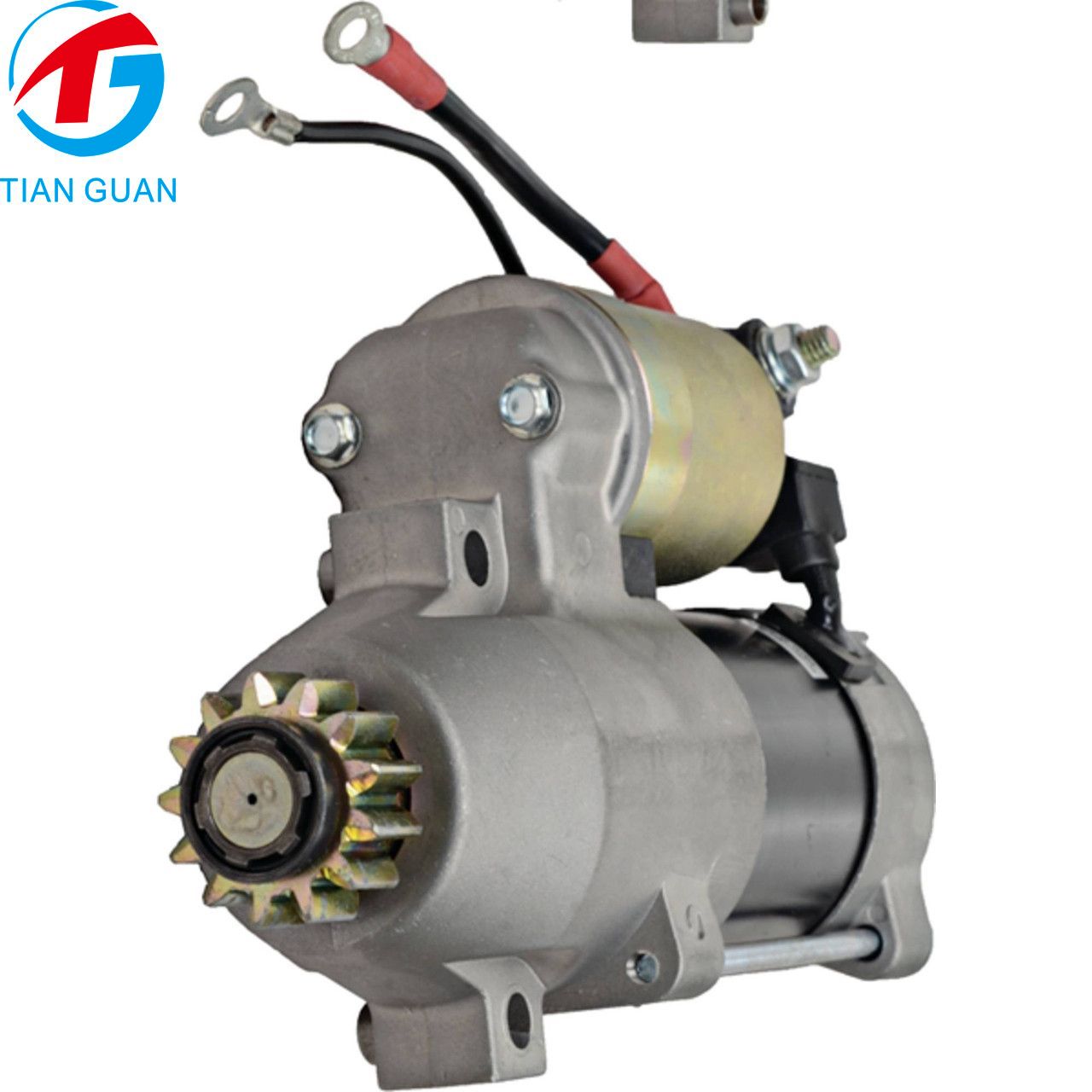

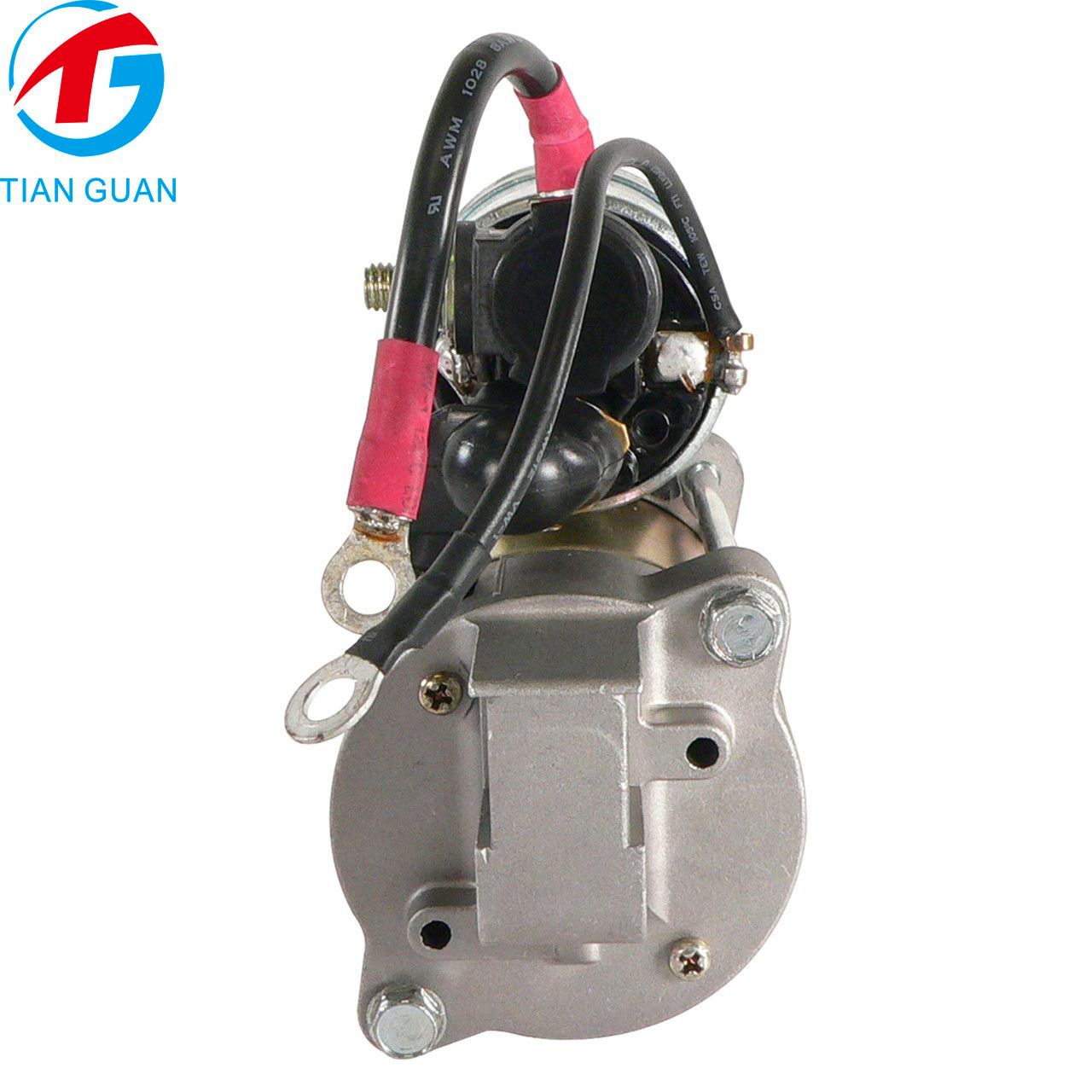

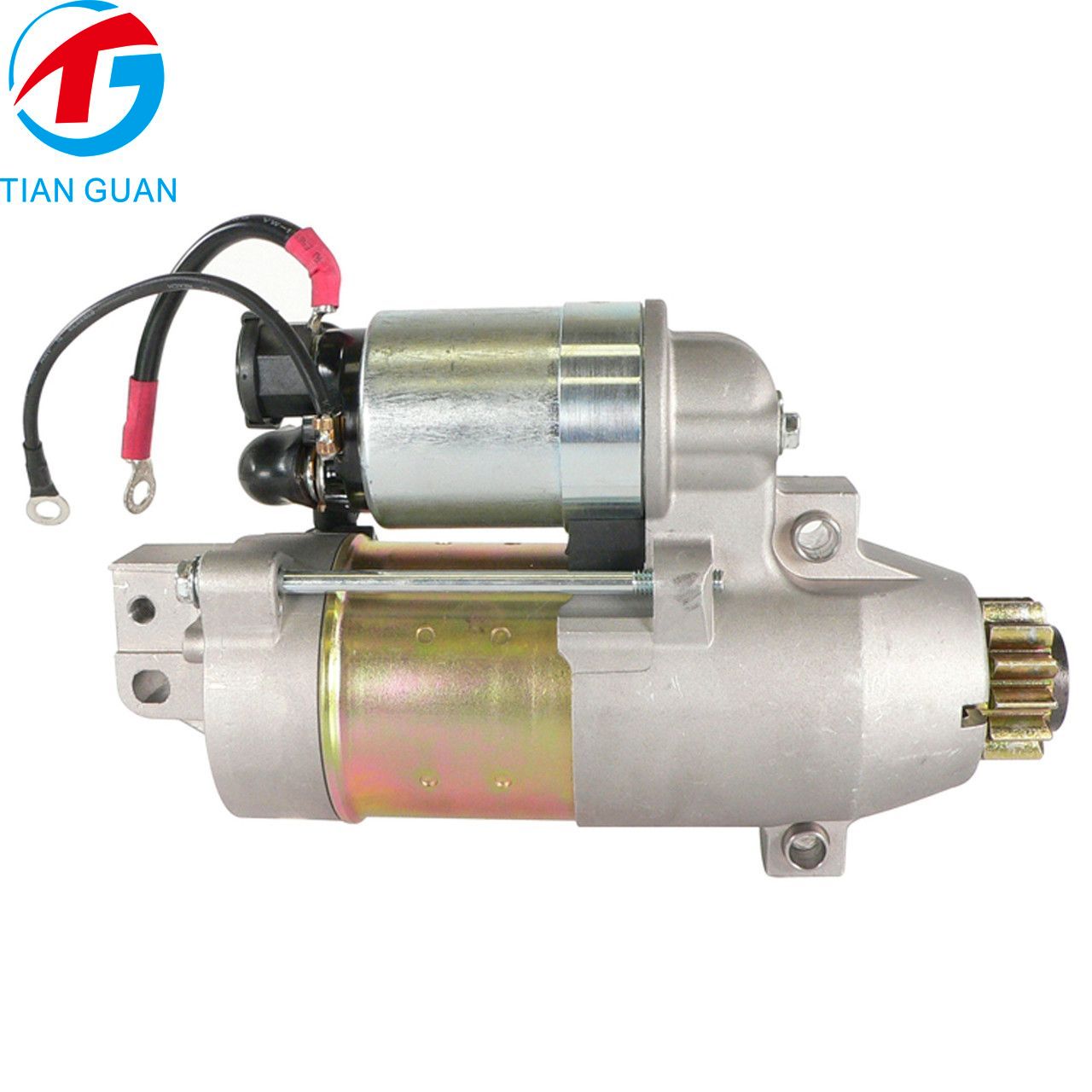

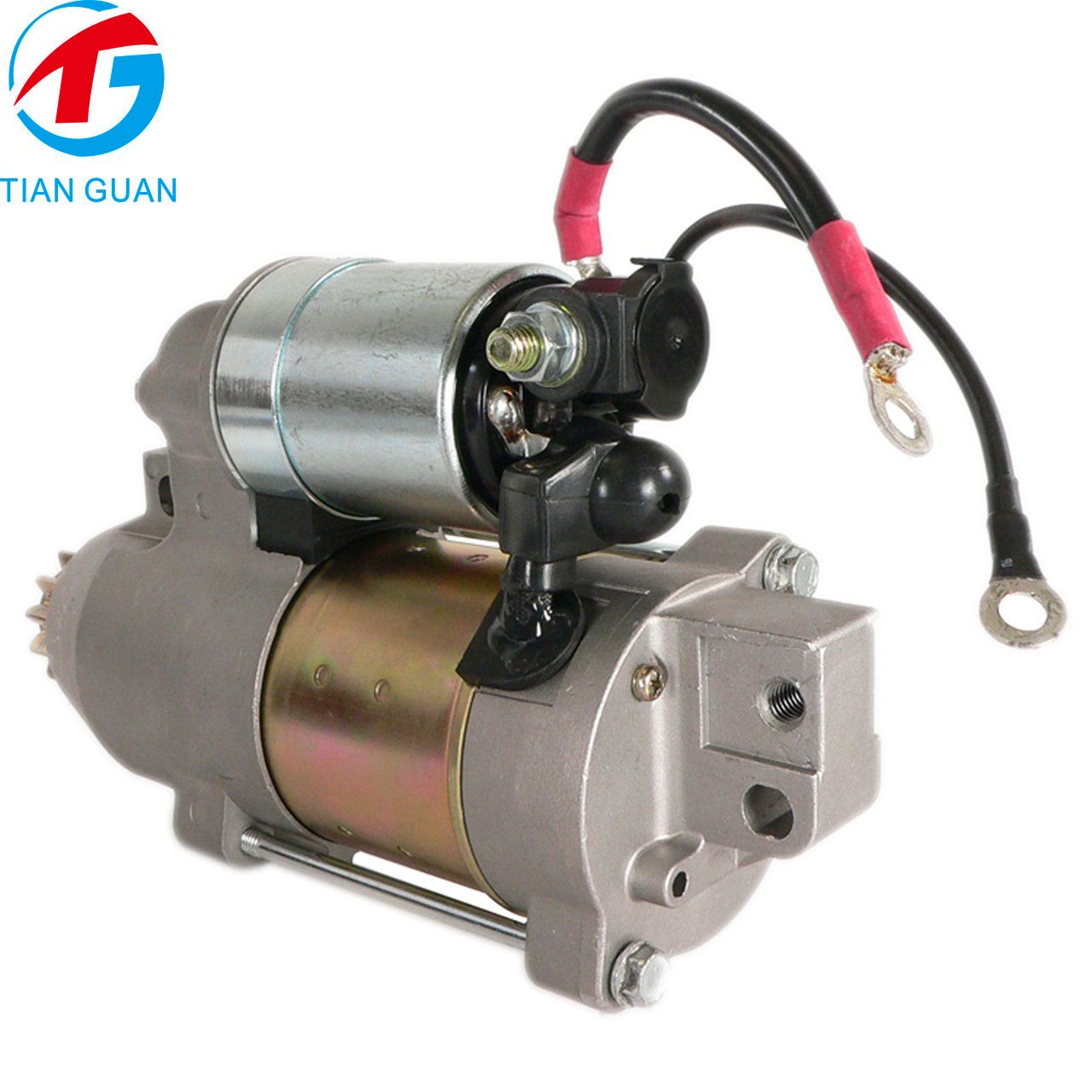

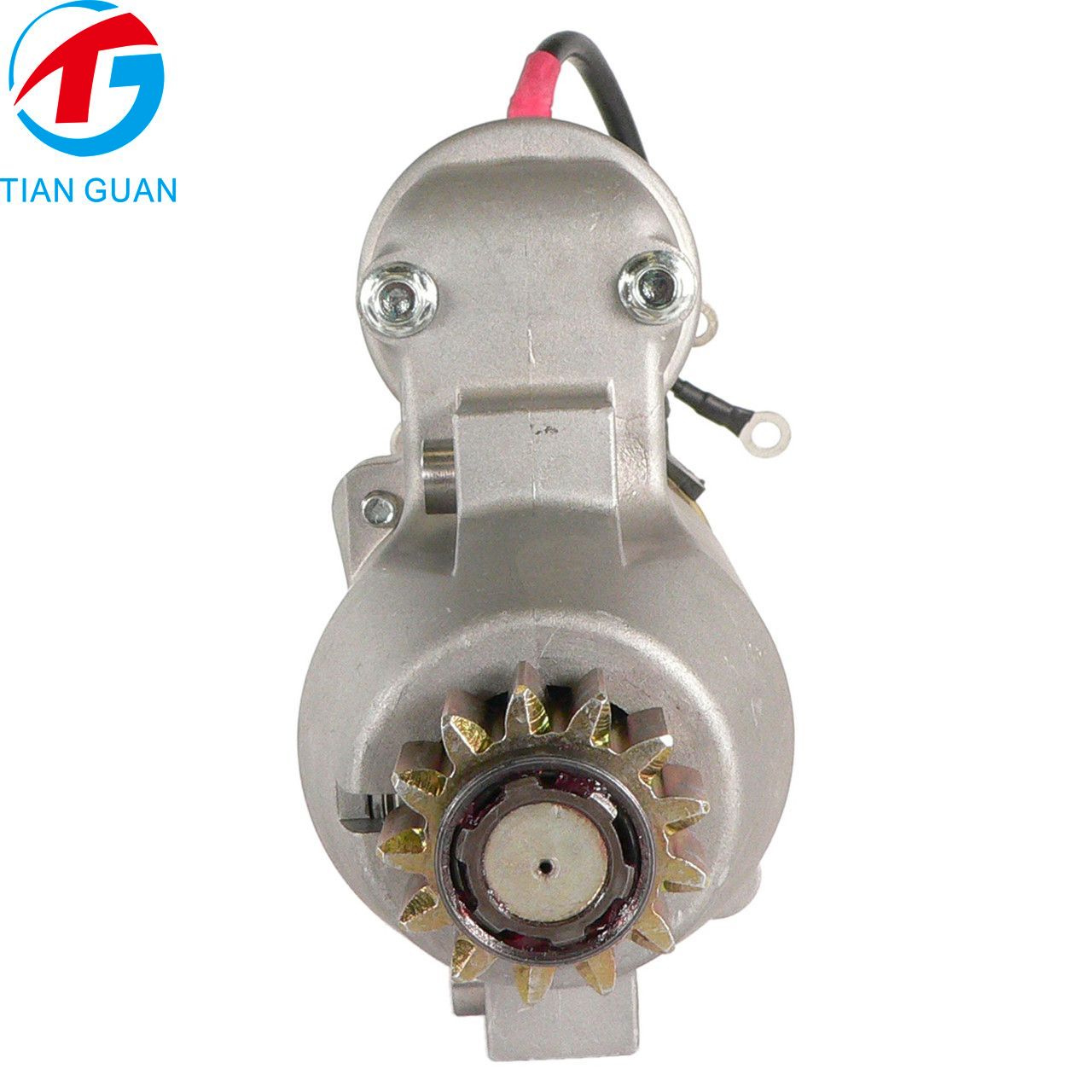

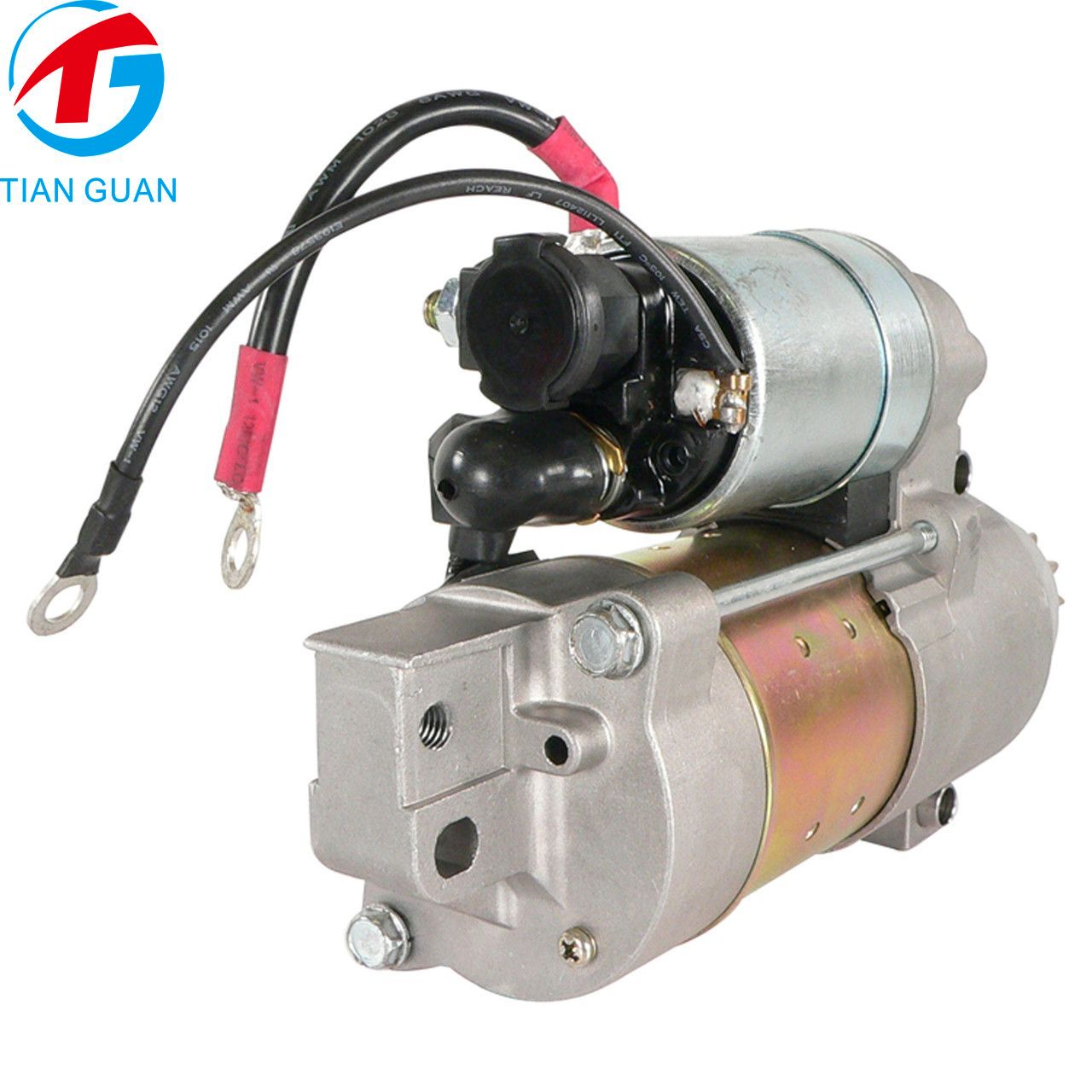

Starter for Yamaha Outboard Motor F100Tlr, F100Txr, F75Tlr 1999-2002; SHI0128
ITEM NO：STG50452
| API MARINE | MOT5017 |
| ARCO MARINE | 3430 |
| ARROWHEAD | SHI0128, S114-828DN, S114-828B, S114-828C, S114-828CN |
| EMP PARTS | 4-6425 |
| HITACHI | S114-828B, S114-828C |
| J & N | 410-44071 |
| LESTER | 18347 |
| MERCURY MARINE | 50-804312T1, 804312T1 |
| QUICKSILVER | 8M6007420 |
| SIERRA MARINE | 18-6425 |
| WAI | 18347N |
| YAMAHA | 67F-81800-00-00, 67F-81800-01-00, 67F-81800-02-00 |
Product Specs
| Item Condition | Aftermarket Part |
| Unit Type | Starter |
| Voltage | 12 |
| Rotation | CCW |
| Teeth | 13 |
| KW | 1.4 |
| Dimension | Replacement Unit:, Gear OD: 1.571in / 39.9mm, Mtg. Ear Holes: 8.5mm Unthreaded, Notes: Battery Stud M8-1.25 Threaded, 130mm Ignition Lead, 100mm Battery Lead, |
| Starter Type | PMGR |
| Fits | Mercury Outboards 75, 90HP 4-Stroke Yamaha Outboards 75, 80, 100HP 4-Stroke |
Starter for Yamaha Outboard Motor F100Tlr, F100Txr, F75Tlr 1999-2002; SHI0128
| MAKE | TYPE | MODEL | YEAR | ENGINE |
| MARINER | Engines - Marine Outboard | 75ELHPT 4-Stroke | 2000 | 84.6ci - 75 HP |
| MARINER | Engines - Marine Outboard | 75ELHPT 4-Stroke | 2001 | 84.6ci - 75 HP |
| MARINER | Engines - Marine Outboard | 75ELPT 4-Stroke | 2000 | 84.6ci - 75 HP |
| MARINER | Engines - Marine Outboard | 75ELPT 4-Stroke | 2001 | 84.6ci - 75 HP |
| MARINER | Engines - Marine Outboard | 90ELHPT 4-Stroke | 2000 | 1.6L - 97.4ci - 90 HP |
| MARINER | Engines - Marine Outboard | 90ELHPT 4-Stroke | 2001 | 1.6L - 97.4ci - 90 HP |
| MARINER | Engines - Marine Outboard | 90ELPT 4-Stroke | 2000 | 1.6L - 97.4ci - 90 HP |
| MARINER | Engines - Marine Outboard | 90ELPT 4-Stroke | 2001 | 1.6L - 97.4ci - 90 HP |
| MARINER | Engines - Marine Outboard | 90ELPT Coastal 4-Stroke | 2000 | 1.6L - 97.4ci - 90 HP |
| MARINER | Engines - Marine Outboard | 90EXLPT Saltwater 4-Stroke | 2001 | 1.6L - 97.4ci - 90 HP |
| MERCURY MARINE | Engines - 4-Stroke OB - By SN | 75.0HP - SN 0G960500 Thru 0T800999 | All | 75.0HP |
| MERCURY MARINE | Engines - 4-Stroke OB - By SN | 75.0HP - SN 0T801000 Thru 1B226999 | All | 75.0HP |
| MERCURY MARINE | Engines - 4-Stroke OB - By SN | 75.0HP Bodensee - SN 0G960500 Thru 0T800999 | All | 75.0HP |
| MERCURY MARINE | Engines - 4-Stroke OB - By SN | 75.0HP Bodensee - SN 0T801000 Thru 1B226999 | All | 75.0HP |
| MERCURY MARINE | Engines - 4-Stroke OB - By SN | 90.0HP - SN 0G960500 Thru 0T800999 | All | 90.0HP |
| MERCURY MARINE | Engines - 4-Stroke OB - By SN | 90.0HP - SN 0T801000 Thru 1B226999 | All | 90.0HP |
| MERCURY MARINE | Models - By Engine Size | 75ELHPT 4-Stroke | 2000 | 75HP |
| MERCURY MARINE | Models - By Engine Size | 75ELHPT 4-Stroke | 2001 | 75HP |
| MERCURY MARINE | Models - By Engine Size | 75ELPT 4-Stroke | 2000 | 75HP |
| MERCURY MARINE | Models - By Engine Size | 75ELPT 4-Stroke | 2001 | 75HP |
| MERCURY MARINE | Models - By Engine Size | 75ELPT 4-Stroke | 2002 | 75HP |
| MERCURY MARINE | Models - By Engine Size | 75ELPT 4-Stroke | 2003 | 75HP |
| MERCURY MARINE | Models - By Engine Size | 75ELPT 4-Stroke | 2004 | 75HP |
| MERCURY MARINE | Models - By Engine Size | 75ELPT 4-Stroke | 2005 | 75HP |
| MERCURY MARINE | Models - By Engine Size | 90ELHPT 4-Stroke | 2000 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90ELHPT 4-Stroke | 2001 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90ELPT 4-Stroke | 2000 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90ELPT 4-Stroke | 2001 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90ELPT 4-Stroke | 2002 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90ELPT 4-Stroke | 2003 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90ELPT 4-Stroke | 2004 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90ELPT 4-Stroke | 2005 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90ELPT Saltwater 4-Stroke | 2004 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90ELPT Saltwater 4-Stroke | 2005 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90EXLPT Saltwater 4-Stroke | 2001 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90EXLPT Saltwater 4-Stroke | 2002 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90EXLPT Saltwater 4-Stroke | 2003 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90EXLPT Saltwater 4-Stroke | 2004 | 90HP |
| MERCURY MARINE | Models - By Engine Size | 90EXLPT Saltwater 4-Stroke | 2005 | 90HP |
| YAMAHA | Outboard Motors | F100TLR | 1999 | 100HP |
| YAMAHA | Outboard Motors | F100TLR | 2000 | 100HP |
| YAMAHA | Outboard Motors | F100TLR | 2001 | 100HP |
| YAMAHA | Outboard Motors | F100TLR | 2002 | 100HP |
| YAMAHA | Outboard Motors | F100TLR | 2003 | 100HP |
| YAMAHA | Outboard Motors | F100TXR | 1999 | 100HP |
| YAMAHA | Outboard Motors | F100TXR | 2000 | 100HP |
| YAMAHA | Outboard Motors | F100TXR | 2001 | 100HP |
| YAMAHA | Outboard Motors | F100TXR | 2002 | 100HP |
| YAMAHA | Outboard Motors | F100TXR | 2003 | 100HP |
| YAMAHA | Outboard Motors | F75TLR | 2003 | 75HP |
| YAMAHA | Outboard Motors | F75TLR | 2004 | 75HP |
| YAMAHA | Outboard Motors | F80TJR | 2002 | 80HP |
| YAMAHA | Outboard Motors | F80TJR | 2003 | 80HP |
| YAMAHA | Outboard Motors | F80TLR | 2000 | 80HP |
| YAMAHA | Outboard Motors | F80TLR | 2001 | 80HP |
| YAMAHA | Outboard Motors | F80TLR | 2002 | 80HP |
| YAMAHA | Outboard Motors | F80TLR | 2003 | 80HP |
| YAMAHA | Outboard Motors | F80TXR | 1999 | 80HP |
| YAMAHA | Outboard Motors | F80TXR | 2000 | 80HP |
| YAMAHA | Outboard Motors | F90TJR | 2003 | 90HP |
| YAMAHA | Outboard Motors | F90TJR | 2004 | 90HP |
| YAMAHA | Outboard Motors | F90TLR | 2003 | 90HP |
| YAMAHA | Outboard Motors | F90TLR | 2004 | 90HP |
