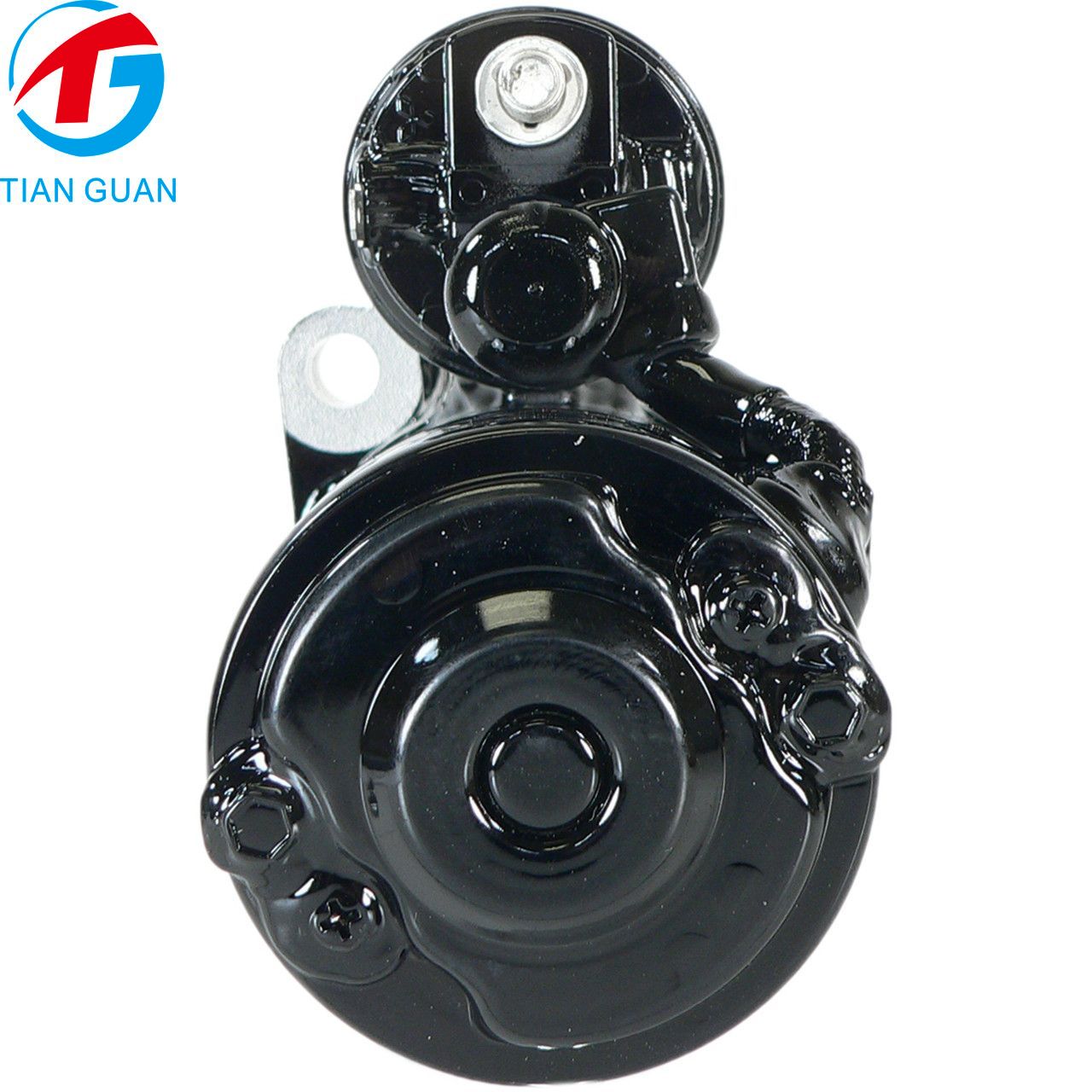

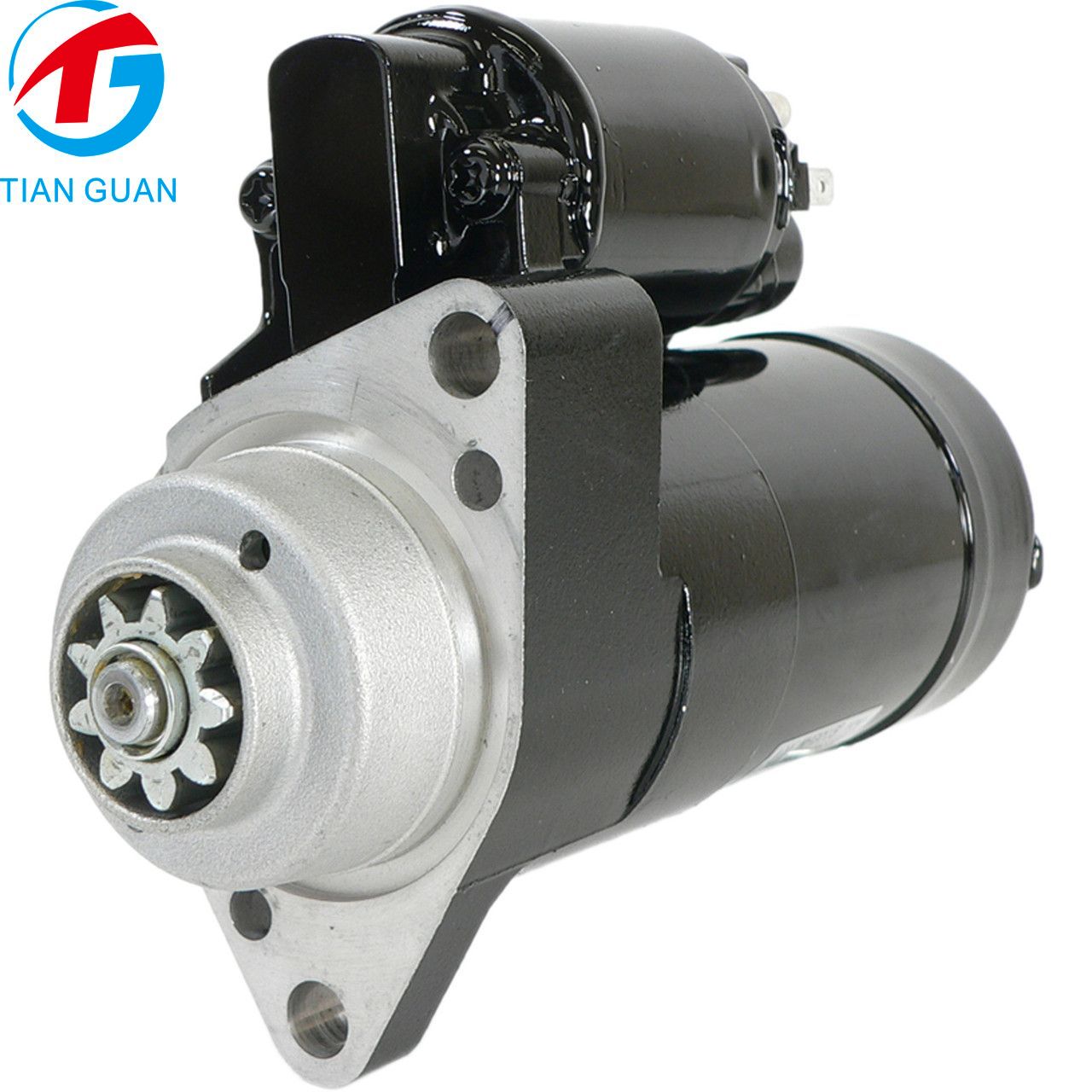

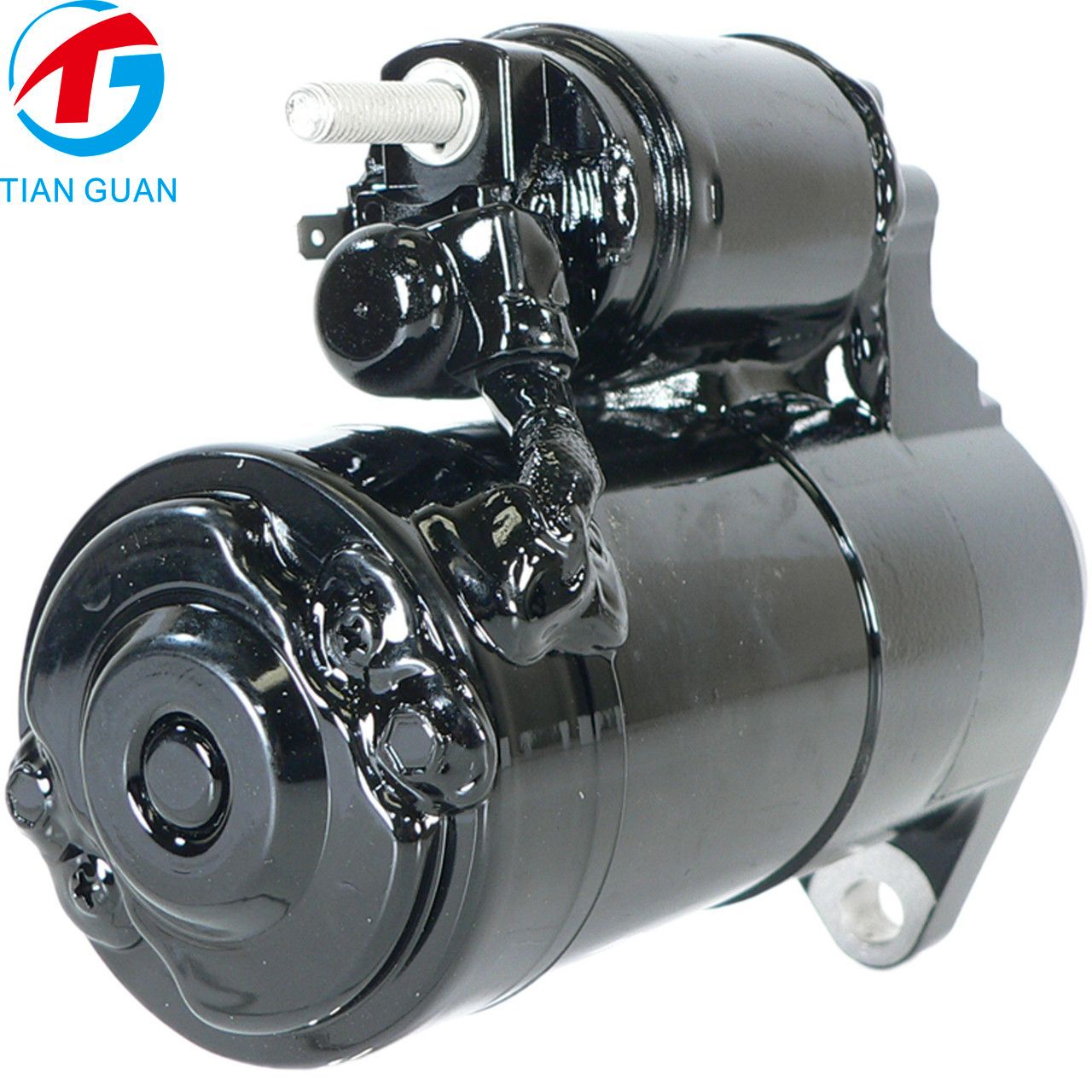

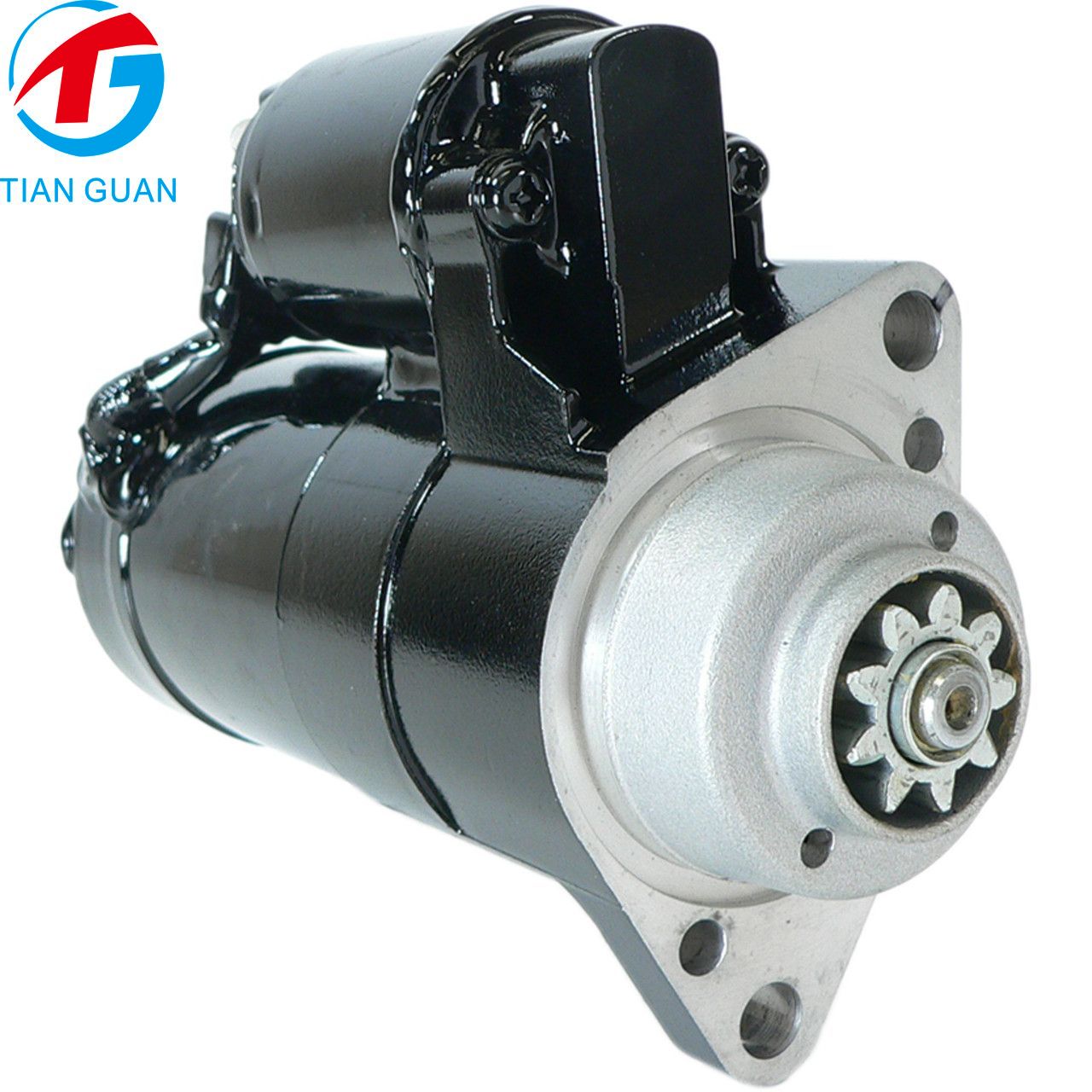

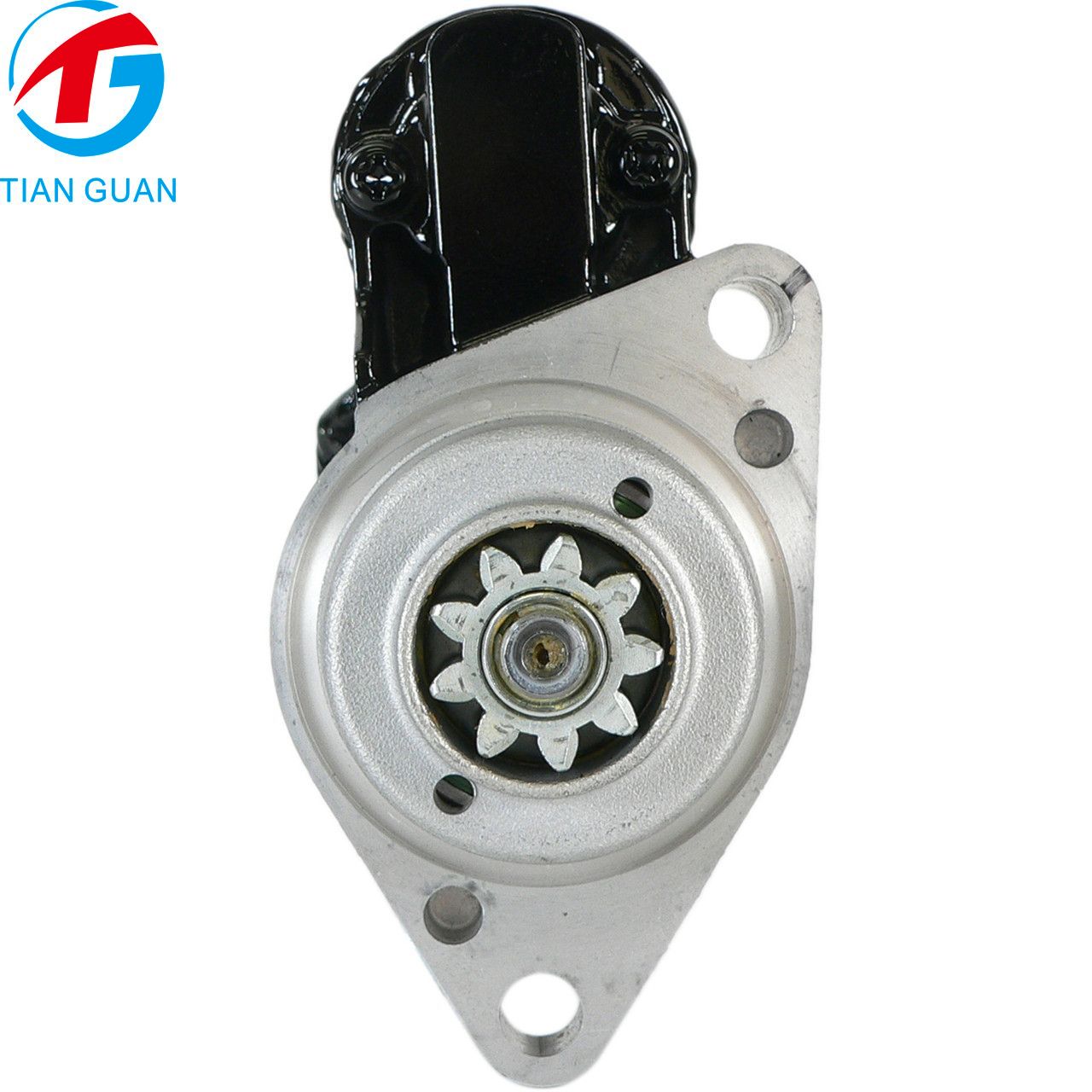

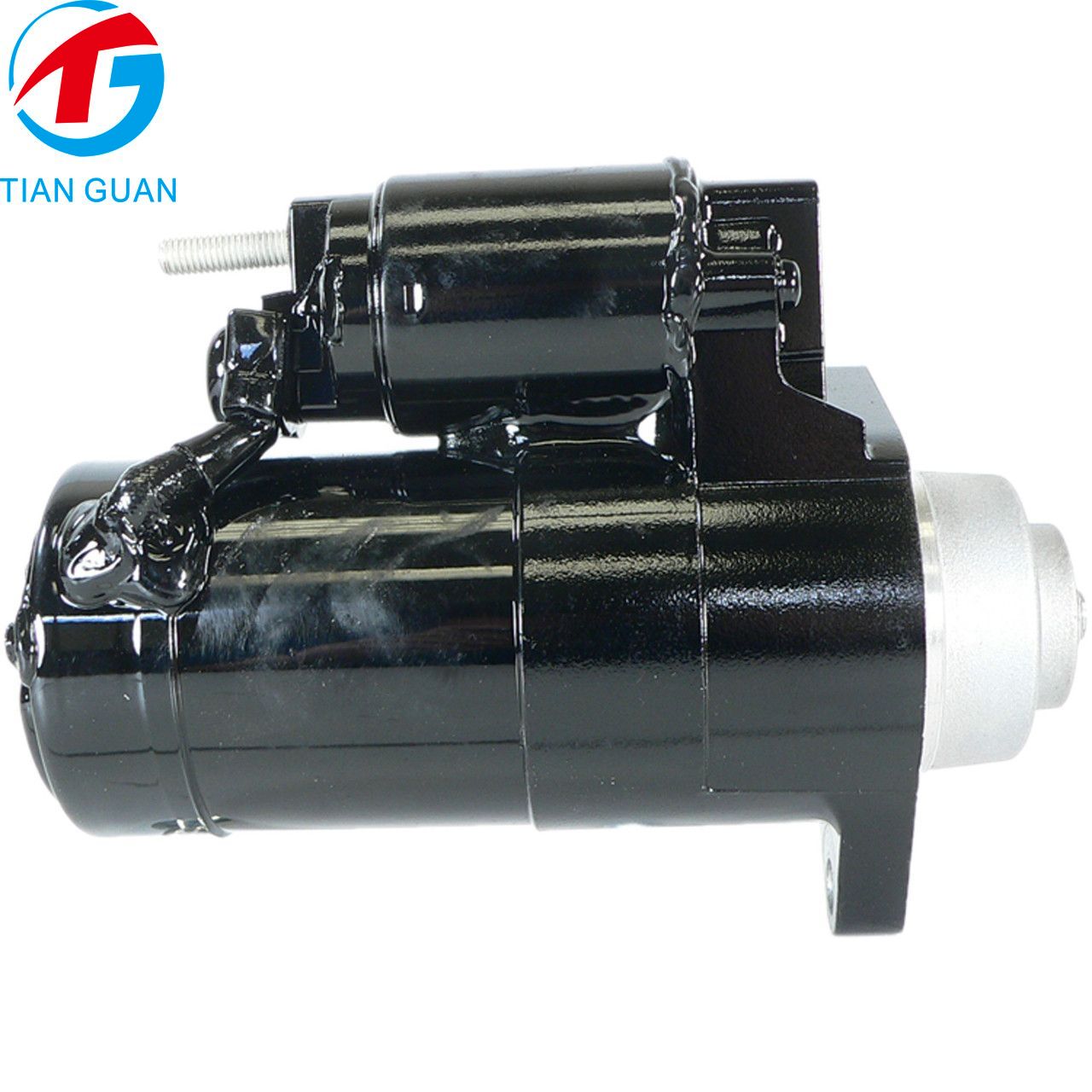

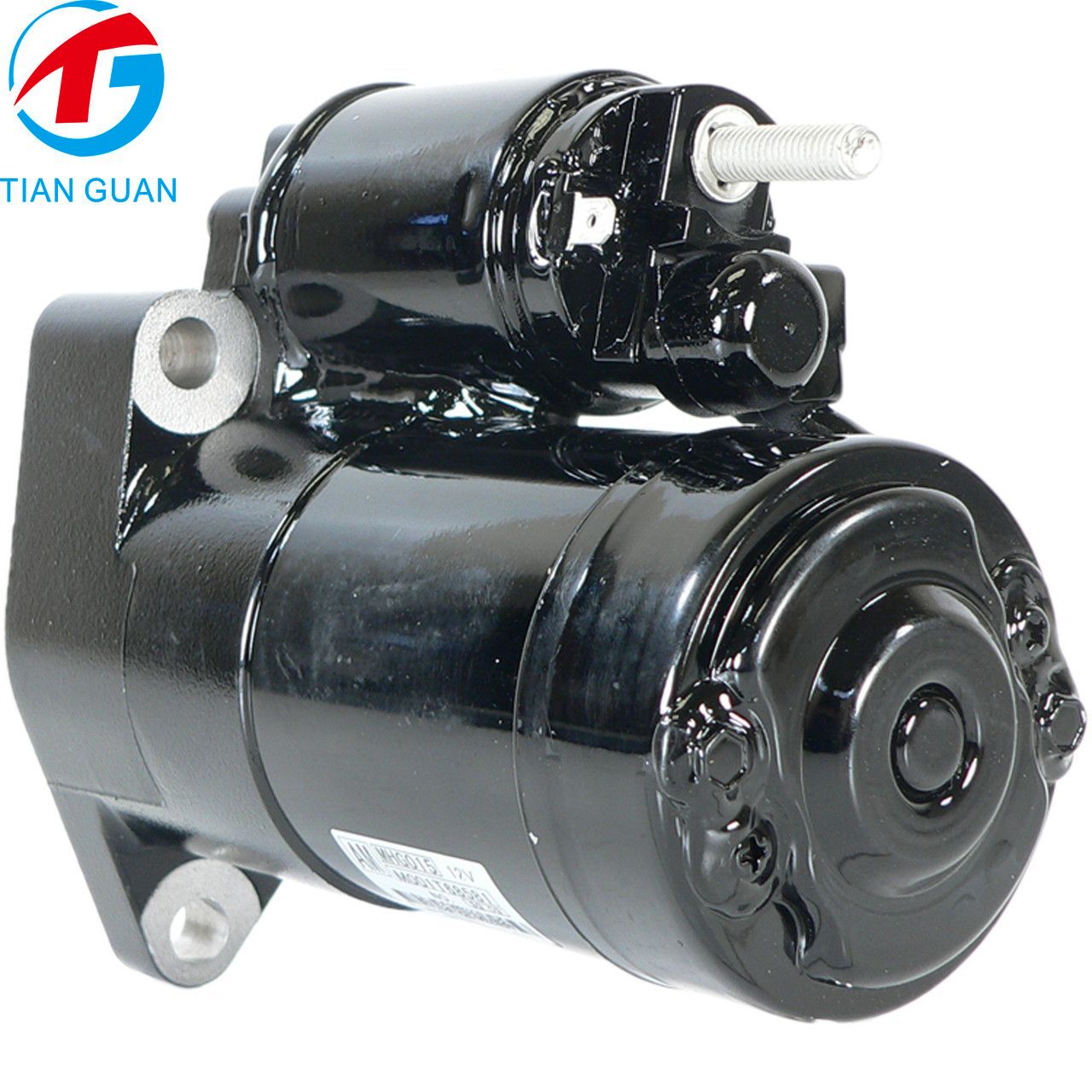

Starter for 200 225 BF200, BF225 Honda Outboard Marine 2002-2014
ITEM NO：STG50282
| ARROWHEAD | SMT0315, 410-48150 |
| API MARINE | MOT6002 |
| ARROWHEAD (OEM) (OLD) | M1T68581 |
| DUBOIS | M900552 |
| HONDA | 31200-ZY3-003, 31200-ZY3A-0034, MHG015 |
| J & N | 410-48150 |
| LESTER | 19607 |
| MES MOTORCYCLE & MARINE | S2092M, S2092M-OE |
| MITSUBISHI | M1T68581 |
| PIC | 103-5248 |
Product Specs
| Item Condition | Aftermarket Part |
| Unit Type | Starter |
| Voltage | 12 |
| Rotation | CW |
| Teeth | 9 |
| KW | 1.7 |
| Dimension | 28.3mm Gear OD;59.9mm Registration OD;(2) 11.4mm Mounting Holes; 172.5mm Flange to Rear;8mm x 1.25 B+ And Motor Studs;Spade Type S Terminal; |
| Starter Type | PMGR |
| Fits | HONDA 200HP, 225HP OUTBOARD ENGINES 2002-14 |
Starter for 200 225 BF200, BF225 Honda Outboard Marine 2002-2014
| MAKE | TYPE | MODEL | YEAR | ENGINE |
| HONDA | Engines - Marine Outboard | BF175 | All | 175HP |
| HONDA | Engines - Marine Outboard | BF200 | 2002 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2003 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2004 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2005 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2006 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2007 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2008 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2009 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2010 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2011 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2012 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2013 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2014 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2015 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2016 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2017 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2018 | 200HP |
| HONDA | Engines - Marine Outboard | BF200 | 2019 | 200HP |
| HONDA | Engines - Marine Outboard | BF225 | 2002 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2003 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2004 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2005 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2006 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2007 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2008 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2009 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2010 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2011 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2012 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2013 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2014 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2015 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2016 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2017 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2018 | 225HP |
| HONDA | Engines - Marine Outboard | BF225 | 2019 | 225HP |
| HONDA | Engines - Marine Outboard | BF250 | 2012 | 250HP |
| HONDA | Engines - Marine Outboard | BF250 | 2013 | 250HP |
| HONDA | Engines - Marine Outboard | BF250 | 2014 | 250HP |
| HONDA | Engines - Marine Outboard | BF250 | 2015 | 250HP |
| HONDA | Engines - Marine Outboard | BF250 | 2016 | 250HP |
| HONDA | Engines - Marine Outboard | BF250 | 2017 | 250HP |
| HONDA | Engines - Marine Outboard | BF250 | 2018 | 250HP |
| HONDA | Engines - Marine Outboard | BF250 | 2019 | 250HP |
